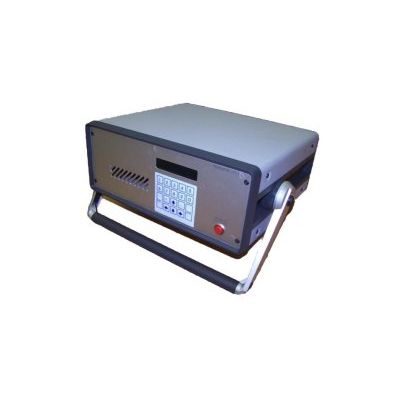

AGCOS - Model GTS-1 -Multifunction Transmitter for Geophysical EM surveys
Transmitter GTS-1 is intended for work from an alternating current single-phase network with the voltage 220 V and frequency 50 Hz on loading with the resistance 10 - 1000 ohm.
Most popular related searches
- Supported EM Methods: CSAMT, FDEM
- Frequency range, Hz: 0.1 – 1 000 000
- Loading resistance range, ohm: 10 - 1000
- Maximum power output, kW: 1
- Signal type: meander
- Remote control: RS-232 - USB
- Output current, A, not more: 5
- Output voltage, V, not more: 300
- Power consumption from the alternating current network 220 V, kW, not more: 1.5
- Protection against breakage / short circuit: +
- Accuracy of current stabilization, %, not worse: ±0.5
- Frequency stability, not worse: ±3*10-6
- Range of working temperatures, degrees C: -10 … +40
- Weight, kg, not more: 9
- Dimensions, mm: 364×147×331
