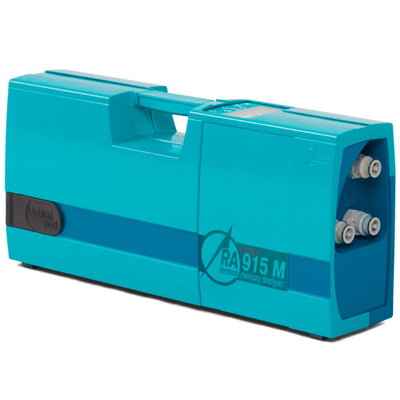

Lumex - Model RA-915M -Multifunctional Mercury Analyzer

RA-915M is used for background air monitoring, mercury surveys including continuous measurements from vehicles, indoor and outdoor pollution detection and mapping, demercurization control, occupational health and safety, geochemical exploration, etc.

Direct measurements comply with EN 15852 standard for the determination of total gaseous mercury in the air.

• Differential Zeeman atomic absorption spectrometry with high frequency modulation of light polarization (ZAAS-HFM).

• Direct continuous measurement; no gold traps, no compressed gases
• Ultra-low detection limit and highest selectivity
• Real-time operation mode for air and gases with 1 s response time
• Attachments for direct mercury determination in liquids, solids, and hydrocarbon gases
• Wide dynamic measuring range (six orders of magnitude)
• Auto zero drift correction
• Self-diagnostic with a built-in test cell
• Controlled by a keypad or a PC via USB interface
• Data logger for 122 hours of data acquisition, averaging, and storage
• Rechargeable battery for up to 8 hours operation

Analyzer can be used in combination with attachments for analysis of solid and liquid samples:

• PYRO-915+ attachment for liquid and solid samples analysis using thermal decomposition technique (with thermoscanning option);
• RP-92 attachment for liquid and solid samples analysis using cold vapor technique (acid digestion and chemical reduction);
• RP-91NG attachment for direct analysis of hydrocarbon gases.

RA-915M analyzer and attachments are covered by a full 1-year warranty.

RA-915M portable Zeeman mercury analyzer is supplied with the RAPID software, charger, shoulder bag, air intake hose, spare filters, interface cable, manuals. Attachments are available on request.

Upon request, installation and commissioning of RA-915M analyzer and attachments can be carried out at customer's site by our service engineers. Support and training of operators, meeting сustomer's specific needs, are provided by highly qualified application specialists.

• Measurement principle: Atomic absorption spectrometry at 254 nm with Zeeman correction of background absorption

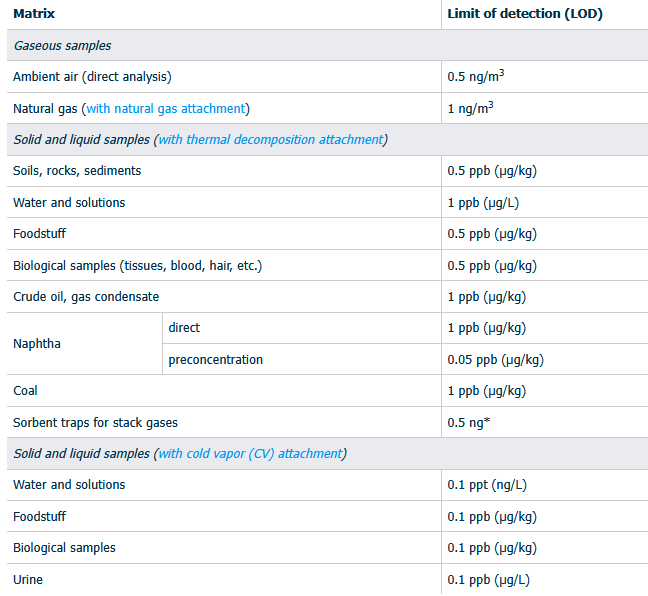

• Detection limit: 0.5 ng/m3
• Measurement ranges: 0 – 20 000 ng/m3
• 0 – 2 000 000 ng/m3
• Analysis time: Direct real-time; 1 s response time
• Data logger: 122 hours data storage
• Battery: 8 hours
• Power supply: - Built-in battery (up to 8 hours of continuous operation)
• - external power supply 100 – 240 VAC, 50/60 Hz
• Power consumption: Max. 35 W
• Dimensions: 470x110x220 mm
• Weight: 7 kg
