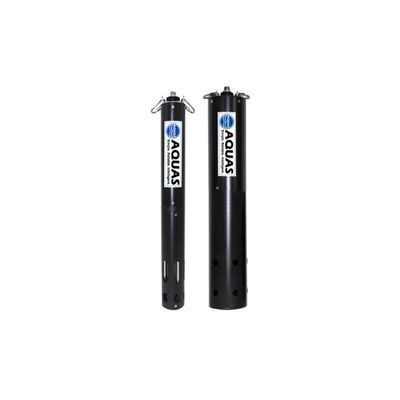

Aquas - Model MAX Series -Multiparameter Water Quality Monitoring Sonde

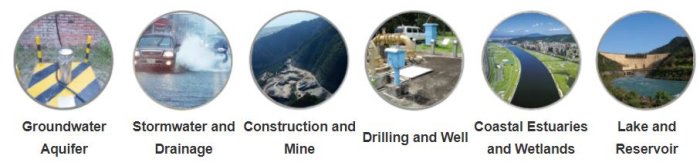

The MAX series are compact-sized, simple and cost-effective multiparameter water quality monitoring sonde. It is easy to be deployed in groundwater, sewer and surface water to monitor multiple water quality parameters such as conductivity, pH, dissolved Oxygen, turbidity, total suspended solids, chlorophyll a, blue-green algae, CDOM/fDOM, level, temperature....etc. With robust IP68 water submersible enclosure, the product is perfectly used in many applications such as groundwater quifer characterization,sewer system, construction and mine, drilling and well, coastal estuaries and wetlands, lake and reservoir.
- Simultaneously Monitoring Multiple Parameters, including pH, ORP, Conductivity, Dissolved Oxygen, Turbidity, Total Suspended Solids, ChlorophyII a, Blue-Green Algae, CDOM/fDOM, Level, Temperature
- Ruged sub-2" design make it perfect for groundwater , well, mining and sewer monitoring
- Direct Measurement in the Media, No Sampling and Pre-treatment
- Online Real-time, Continuous Measurement
- Auti-fouling Automatic Wiper, Almost No Maintenance
- Ultra Low Power Consumption, Ideal for Outdoor Applications
- Robust IP68 Enclosure, Continuous Submersible to 100 m of Water
- Standard Modbus R TU Communication Protocol
The MAX Series is built-in RS485 communication, providing seamless connections from sensors to public or private network.

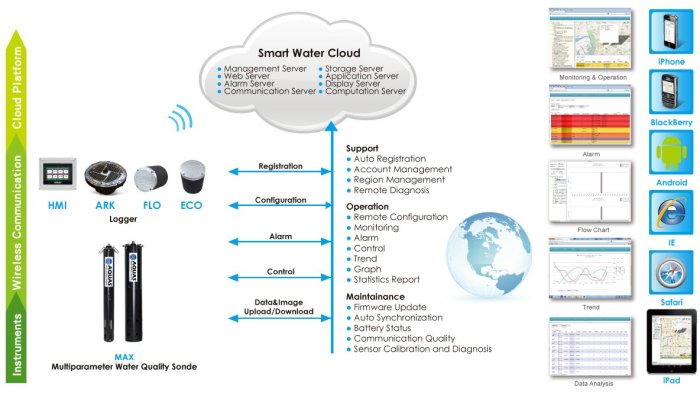

AQWEB/AQOPC Station
- Notebook with AQCFG software for configuration
- AQWEB WEB Server software for configuration, automatic data acquisition and storage, remote monitoring, alarming, control, Google Earth fusion display, data analysis, transient pressure analysis, time series trend graph and tabular report functions
- Seamless SCADA software and database connectivity via AQOPC OPC server
ONE/HMI/ARK/FLO/ECO Wireless Logger
- Periodically sample sensors and logged with time stamp
- Borderless cellular communication
- Peer to peer communication

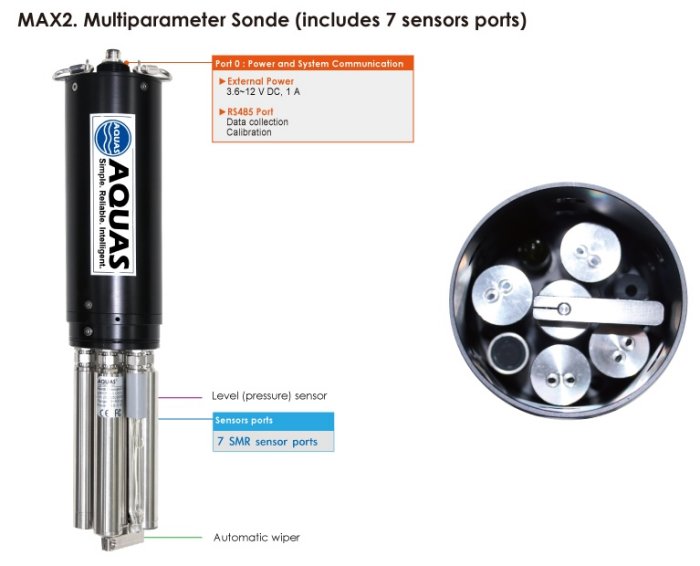

MAX Multiparameter Sonde
- RS485 communication
- Standard Modbus RTU protocol
- Up to 1. 2 Km transmission distance
- Power: 3.6~12 V DC, 1 A
- Interface: 19,200 bps, 8 bits, no parity, 1 stop bit
- Environmental: Operating 0 to 85 °C
- Protection: IP68 (submersion at 100 m depth
- Housing Material: SS316L; Titanium (optional)
- Dimensions: MAX1: Φ 47x328 (H) mm; MAX2: Φ 75x365 (H) mm
- Weight: MAX1: 1.5 Kg ; MAX2: 2.5 Kg
