Rex - Multiple Frequency Pipe and Cable Locator
Rex is Schonstedt’s newest pipe and cable locator, recommended for all underground utilities: water and sewer, electric, telecom, and gas. Rex is a multi-frequency locator with a price tag comparable to single-frequency locators. The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag.
- Ultralight Design: Receiver + Transmitter = Under 7lbs
- Compact & Portable: Receiver retracts for easy carrying
- Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz plus 50/60 Hz passive and 512 Hz sonde detection.
- Schonstedt’s 3-year warranty – Best in the industry.
A new slim and ultralight transmitter was designed specifically for Rex. Its thin and sleek profile combines with a retractable receiver to make Rex the most user-friendly and portable pipe & cable locator on the market. And best of all, Rex is a multi-frequency locator with a price tag comparable to single-frequency locators.

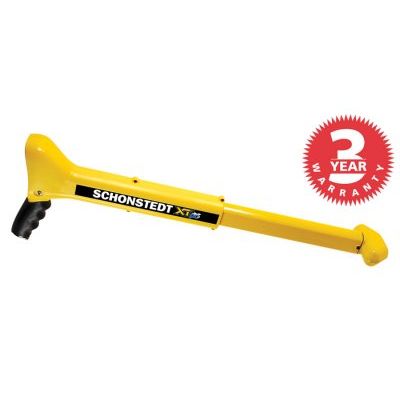

Receiver
- OPERATING FREQUENCY:
- Active: 512 Hz, 33 kHz and 82 kHz
- Passive: 50 or 60 Hz
- Sonde: 512 Hz
- BATTERY: One 9V battery
- BATTERY LIFE: 12 hours (intermittent use)
- WEIGHT (INCL. BATTERIES): 2.8 lbs (1.25 kg)
- OPERATING TEMP: -4°F to 140°F (-20°C to 70°C)
- WATER AND DUST RESISTANCE: Rated IP54
DIMENSIONS
- Closed: 17.5" (~44 cm)
- Extended: Extended: 27.7" (~70 cm)
- MAX. DEPTH CAPABILITY: Approximately 19` (5.8 m)
- Sonde mode - approximately 5’ - 15’ (1.5 m to 4.2 m)
Transmitter
- OPERATING FREQUENCY: 82kHz, 33kHz & 512 Hz
- OPERATING MODES: Conductive, Inductive, and Inductive Clamp
- MAX. OUTPUT POWER: (CONDUCTIVE MODE @ 1000 Ω LOAD):
- 512 Hz - 1/2, 1, 2 or 5 W
- 33 kHz - 1/2, 1, 2 or 5 W
- 82 kHz - 1/2 or 1
- BATTERY TYPE: Rechargeable NiMH pack (12V)
- BATTERY LIFE: 8 Hours (intermittent use)
- CHARGING: Internal Smart Charger powered by AC/DC power adapter
- DIMENSIONS 10” x 10.25” x 1.75” (25.4 cm x 26 cm x 4.5 cm)
- WEIGHT (INCL. BATTERIES): 3.5 lbs (1.6 kg)
- OPERATING TEMP: -4°F to 140°F (-20°C to 70°C)
- BACKLIGHTING: White LED array
- WATER AND DUST RESISTANCE: Rated IP54
