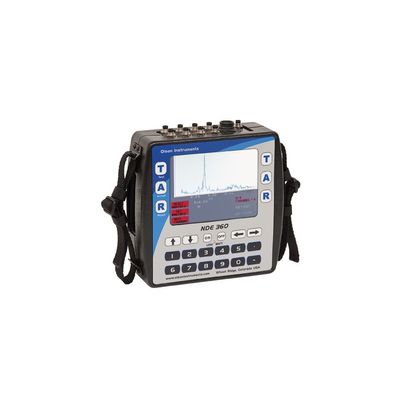

Olson - Model NDE 360 -Multiple System NDT Platform

The NDE 360 multiple system platform is a compact, lightweight, but robust battery-powered handheld system offering mobility and simplicity for use in the field by one person. Test data is stored on a compact flash card and can be analyzed on-site. The NDE 360 is capable of performing seven different add-on test method options as detailed in the tabbed charts below, making it a complete suite for nondestructive testing and evaluation of civil structures at an attractive price. This platform accommodates complete data processing capability for most test methods. Unless you are adding an 8 MB memory option that is required for the Impact Echo Scanner system, there is no need to return the equipment when adding systems.

The NDE 360 is field tested and proven through frequent use by our NDT consulting company, Olson Engineering. Optional training for both hardware and software is available. Visit our website often as we are continually adding new test capabilities to our platforms. Don`t see what you need? — let us know!

Materials Tested:

• Concrete
• Asphalt
• Masonry
• Wood
• Soil
• Rock

Test On:

• Foundations Depth & Integrity Systems
• Structural, Pavement, Tunnel Systems

• LCD with 1/4 VGA, backlit color touch screen, 4.5" x 3.25" (11.4 x 8.5 cm) with QWERT touchscreen keyboard for 5 character file names
• 128, 256, 512, 1024, 2048 data points per channel record length
• High impact ABS plastic case and membrane keypad with simple to use Test - Accept - Reject and numeric key buttons
• Gains: x1, x10, x100-x1000 in four steps per channel
• 2 removable compact flash cards (1 backup card)
• 512 kb standard memory - 8 MB memory required for IE Scanner System
• 14.4V, 4.5Ah NiMH internal rechargeable battery (lasts ~ 6 hours), optional spare battery and charger
• Overall Dimensions: 7.5” x 7.5” x 3”
• (19 x 19 x 7.6 cm)
• Signal Inputs: Up to 4 wide band channels with 16 bit analog/digital converters
• Weight: 4.1 lbs (1.86 kg)
• Shock mounted, weather resistant, field ruggedized design
• Several add-on systems available. Check with Olson if you do not see the system you need as we are continually adding to our equipment platforms.
