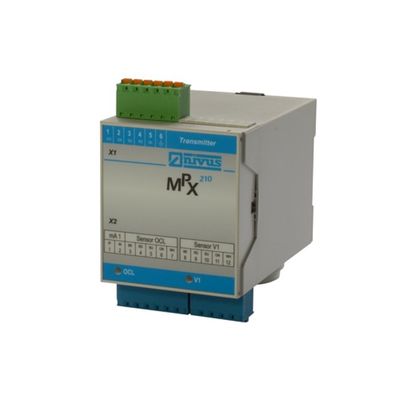

NIVUS - Model MPX0 -Multiplexer for NivuFlow Transmitters

Intelligent multiplexer for bundled signal transmission from correlation sensors. The unit is suitable for connection of more than three flow velocity sensors to NivuFlow measurement systems as well.

Connectable Sensors

Flow velocity sensors

• POA-V2
• CS2
• Mini sensors via electronic box

Level sensors

• OCL-L1
• NivuBar
• NivuCompact
• Serie i

Common

• Power supply: 12 V DC,
• max. power consumption 9 W (typ. 7 W),
• supplied by transmitter
• Protection: IP20
• Inputs:
• 1 (optional 2) analog 4-20 mA loop-powered sensor connection Ex ib Gb IIB, one of them HART compatible
• 2 (optional 4) x sensor connection Ex ib Gb IIB with RS485 interface
• Outputs: RS 485 to transmitter
