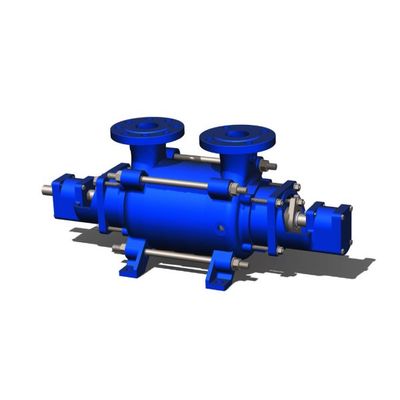

MecanexModel SD -Multistage Centrifugal Pumps with Horizontal Axis

SHARE

“MECANEX Company is one of our suppliers of pumps and machined parts with which we have worked successfully for many years and we can always rely on in the future. The professionalism and dedication of the team is materialized in products and services of European quality. We recommend company MECANEX – Botosani, Romania with confidence!” Special construction for fluid temperatures up to 130 ° C; Stainless steel – available for circulation of corrosive liquids; Manufacturing of pumps from different materials; Frequency 60 Hz; Insulation classes: E, F.

Most popular related searches
  • Cover a wide range of pressures
  • The steel base plate provides
  • A good vibration absorption
  • Long life and reliability due to its robust building
  • Interchangeability of pump parts
  • Possibility of cooling the sealing whilst working
  • Reduced overall size
  • Water supply at medium and high pressures
  • In technological installations as process pumps
  • In cooling installation for industrial furnaces
  • Clean Liquids (of which content of suspension doesn`t exceed 0.5 g/l)
  • Echipata cu camera de racire;
  • Petroleum Liquid products
  • Liquefied gases
  • Flow 15-180 m3/h
  • Height 20-900 m
  • Temperature max. 130 0C
  • Nom. Pressure 64; 100 bar
  • DN refulare 50-100 mm
  • Suction DN 65-125 mm
  • Discharge DN 50-100 mm
  • Horizontal, multistage pumps
  • Bath suction and discharge holes in vertical plane
  • Oil-bath lubricated ball bearings
  • Shaft sealing by graphitized asbestos cord
  • Silent operation
  • Drum-type axial balancing
  • Equipped with cooling-device
