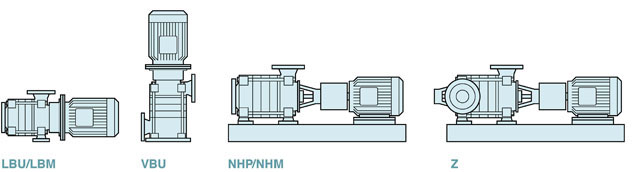

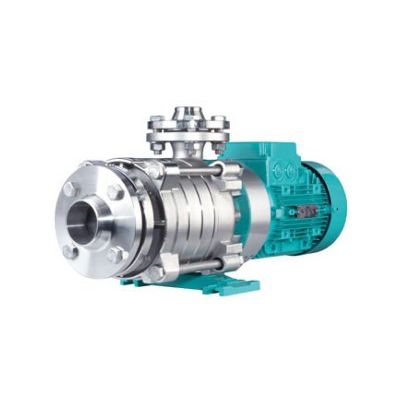

EDUR - Model LBU VBU NHP Z -Multistage Horizontal and Vertical High Pressure Pumps
Multistage horizontal and vertical high pressure pumps in segmental type design with many variants for clean and slightly polluted liquids. Main applications are booster systems, irrigation systems, boiler feed and condensate systems, washing plants, filter technique, water treatment and hardening systems. By means of auxiliary NPSH- stages NPSH-values up to 0,5 m are being achieved.
Most popular related searches
high-pressure pump
high-pressure vertical pump
boiler feed system
booster system
washing plant
boiler feed
water treatment
vertical pump
water treatment system
wash water treatment
High Energy-Efficiency
- low velocitiy of flow
- optimized impeller approach flow
- low internal friction losses
- optimized head per stage
Technical Superiority
- open impellers without axial thrust or balanced closed impellers
- compensation of radial forces by means of diffuser devices in the annular casing
- NPSH inducer stages
Process Reliability
- partial gas supply
- wide performance curve characteristics
- flat or steep characteristic curves
- excellent control mode
Easy Installation
- modular construction system for customized solutions
- optional flange positions
- horizontal or vertical design
- bloc- or bedplate design Easy Maintenance Application
- operating pressure up to 64 bar
- temperature -60° C up to +220° C
- viscosity up to 115 mm2/s
