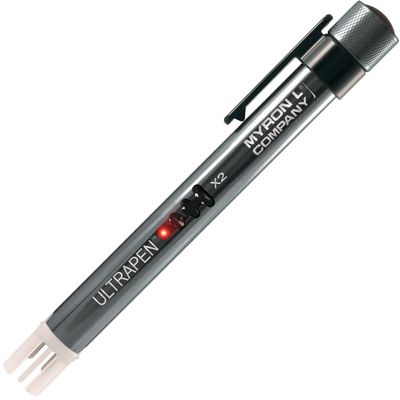

Myron L - Model Ultrapenx2 PTBT1 -Bluetooth Enabled Conductivity/TDS/Salinity/Temperature Pen

• Accuracy of ±1% of READING, ±0.2% at Calibration Point
• KCl, NaCl and 442 Natural Water™ Modes
• Automatic Temperature Compensation
• Autoranging
• Measurement Storage with Time, Date and Location
• Export Stored Measurement Data Via Email
• Proprietary Cell Design
• Rugged Design with Aircraft Aluminum Body
• Durable, Epoxy Encapsulated Electronics
• Powered by One N Type Battery (Included)
• Waterproof

• PTBT1 Pocket Tester Pen
  • Battery Installed
• Protective Cap
• Scoop
• Pocket Clip
• Quick Start Guide

• System Requirements: Myron L® Company PTBTX2™ App: Apple iOS 10.0 or later; Android OS 7.0 or later.
• Measurement Range:
• Conductivity & TDS: 1-9999 µS or ppm; Salinity: 0.0010-9.999 ppt;
• Temperature: 0°-71°C / 32°-160°F
• Accuracy (After Wet Calibration): ± 1% of Reading; Temperature: ± 0.1ºC
• Resolution:
• Conductivity and TDS: 0.1 for 1.0 – 99.9 µS or ppm
• 1 for 100 - 9,999 µS or ppm
• Salinity: 0.0001 for 0.0010 – 0.0999 ppt
•  0.001 for 0.100 – 9.999 ppt
• Temperature: 0.1ºC orºF
• Repeatability:
• less than 1000 µS or ppm ± 1 Count
• ≥ 1000 µS or ppm ± 0.3% of Reading
• Time to Reading Stabilization: 10 – 20 seconds
• Power Consumption: Active Mode: 30 – 140 mA, Sleep Mode: 2 µA
• Temperature Compensation Method: Automatic to 25ºC
• Physical Dimensions: 17.15 cm L x 1.59 cm D or 6.75 in. L x .625 in. D
• Weight: 55 g or 1.94 oz.
• Case Material: Anodized Aircraft Aluminum with Protective Coating
• Battery Type: One N type, Alkaline 1.5 V
• Calibration Standard Solution: KCl: 1800 µS for COND; 442™: 3000 ppm (2027 ppm NaCl) for TDS and Salinity
• Operating/Storage Temperature: 0 – 55ºC or 32 – 131ºF
• Water Resistance: IP67 and NEMA 6
• EN61236-1: 2006 – Annex A: 2008; : Electrostatic discharge to the PTBT1 may cause it to spontaneously power on.
• If this occurs, the PTBT1 will power off after several seconds.
• FCC ID: T7VPAN17: The Bluetooth transceiver device meets the requirements for modular transmitter approval as detailed in FCC Public Notice DA00-1407.
• Canada (IC), license: IC: 216Q-PAN17
• The Bluetooth transceiver device meets the requirements for modular transmitter approval as detailed in RSS-GEN.

WARNING! These products can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm.

• Agriculture
• Hydroponics
• Desalination
• Aquaculture
• Pharmaceutical
• Boilers and Cooling Towers
• Fountain Solutions for Printing
• Horticulture
• Wastewater
• Pool and Spa
• Food and Beverage
• Irrigation
• Reverse Osmosis

The ULTRAPENx2™ PTBT1 uses the following solutions for wet calibration:

• Order MODEL#s: KCL-1800, 442-3000 (2027 ppm NaCl)
