naica - Digital PCR Chips and Reagents
The naica® system’s digital PCR workflow is integrated into a single consumable chip, providing maximized sensitivity and throughput when combined with specially-formulated PCR reagents. Digital PCR workflows do not need to be challenging. Stilla Technologies cutting-edge patented microfluidic innovation integrates the Crystal Digital PCR™ workflow into a single consumable. Combined with specially-formulated naica® PCR MIX reagents, researchers get maximized sensitivity and flexible throughput with simple reaction assembly and minimal hands-on time.
Stilla offers two types of easy-to-use Crystal Digital PCR chip consumables. Depending on your individual digital PCR workflow needs, select the optimal chip type for your application. After sample preparation, each chip requires just a single pipetting step before being loaded into the naica® system for partitioning, PCR amplification, and sample read-out.

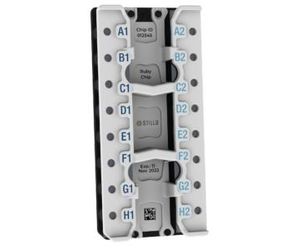

For higher throughput applications, the Ruby Chip offers the analysis of up to 48 samples per run. The Ruby Chip is also compatible with integration to automated liquid handling equipment.
- Capacity: 16 samples/chip
- Input volume: 5 µL/chamber
- Droplets per sample: Up to 17,000
- Dynamic range*: ~ 4.7 log

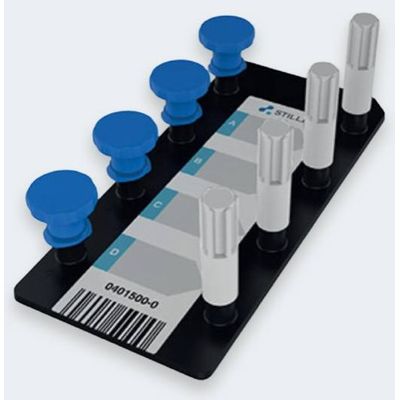

For maximum template input volume and high sensitivity applications, the Sapphire Chip can be loaded with up to 4 samples per chip, and generate up to 30,000 droplets per sample.
The Sapphire Chip supports applications such as rare mutation detection, liquid biopsy, gene expression analysis, and pathogen detection.
- Capacity: Up to 4 samples/chip
- Input volume: 25 µL/chamber
- Droplets per sample: Up to 30,000
- Dynamic range*: ~ 5 log
- Specially-formulated naica PCR MIX reagents ensure optimal performance for Crystal Digital PCR.
