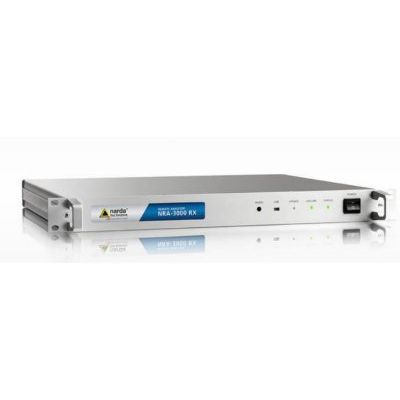

Narda - Model NRA-3000 RX -Remote Analyzer with Receiver Characteristics

The increasing use of wireless technologies and the limited natural resource of the frequency spectrum makes it important that technical parameters and standards are adhered to. The NRA RX models have been specially designed for these tasks, such as:

• Radio reconnaissance and radio surveillance
• Signal demodulation and decoding
• Spectrum occupancy measurements
• Coverage measurements
• Signal analysis and classification
• Detection of illegal transmitters
• SIGINT: COMINT and ELINT

Product features

• Frequency resolution (RBW) from 10 Hz to 20 MHz
• 50 dB input attenuator switchable in 1 dB steps
• Display range from -150 dBm to +21 dBm (RBW = 10 Hz)
• DANL < -155 dBm/Hz
• < 1.2 dB level measurement uncertainty at 15°C to 30°C
• High resolution spectrum with up to 600,000 measurement points
• Detector for fixed resolution (Bins) with +Peak, -Peak, or RMS detectors for data compression
• ASCII or binary data transmission
• Multi-Channel Power option: Simultaneous level measurement in up to 500 freely-definable channels
• Level Meter (Zero Span) option: Resolution bandwidths from 100 Hz to 32 MHz
• Scope and I/Q Data: Real time analysis 100 Hz – 32 MHz in the time domain, I/Q data up to 32 MHz CBW (blockwise); streaming up to 400 kHz CBW

Specifications:

• Frequency range 9 kHz - 3 GHz
• Measurement speed up to 12 GHz/s
• Power consumption < 20 W
• Operating temperature -10° to +50° C
• Audio output AM, FM, USB, LSB, CW
• Reference input 10 MHz
• Dimensions 19`` x 1.75`` x 14.3`` (482 x 45 x 362 mm)
• Weight < 5 kg
