ResinTech - Model SBG1-UPS -Narrowly Graded Chloride Form Type 1 Gel Strong Base Anion Resin

• Polymer Structure: Styrene/DVB
• Polymer Type: Gel
• Functional Group: Trimethylamine

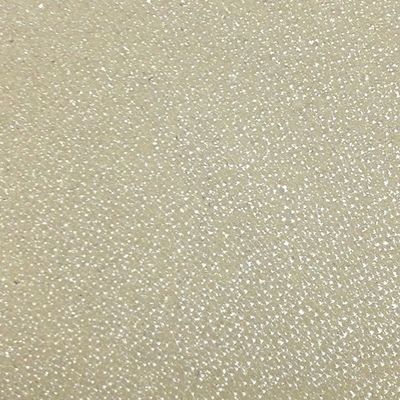

• Physical Form: Spherical Beads
• Ionic Form (as shipped): Chloride or Hydroxide
• Total capacity: > 1.4 meq/mL (Cl Form) / > 1.2 meq/mL (OH Form)
• Water Retention: 42 to 51 percent (Cl Form) / 52 to 60 percent (OH Form)
• Approximate Shipping Weight        : 43 lbs/cu.ft. (Cl Form) / 43 lbs/cu.ft. (OH Form)
• Swelling: 18 to 25 percent Cl to OH
• Screen Size Distribution : 20 to 40 (U.S. Mesh)
• Maximum Fines Content: 0.5 percent (less than 50 Mesh)
• Minimum Sphericity: 95 percent
• Uniformity Coefficient: 1.25 (Approximate)
• Resin Color: White to Amber

Highly Uniform Particle Size

20 to 40 mesh size, provides low pressure drop and superior kinetics

High Total Capacity

Provides long run lengths in single use applications and is ideally suited for chloride form operation

Superior Physical Stability

95% plus sphericity and high crush strengths together with carefully controlled particle distribution provides long life and low pressure drop

Lower Toc Leach Rate

Ideal for use in polishing mixed beds when ordered in the hydroxide form

Complies with us FDA Regulations

Conforms to paragraph 21CFR173.25 of the Food Additives Regulations of the US FDA

Demineralization

ResinTech SBG1-OH-UPS can be used as the anion component in a variety of demineralization applications where a hydroxide form anion resin is coupled with a hydrogen form cation resin. SBG1-OH-UPS is suitable for high operating temperatures and for high flow rates encountered in polishing condensate and other low TDS waters such as RO permeate. SBG1-OH-UPS provides low TOC and low silica leakage in ultrapure demineralizers.

Packed Beds

ResinTech SBG1-UPS has a very narrow particle size range. The uniformity allows a slightly smaller bead size to be used which results in faster exchange of ions, more efficient regeneration and lower leakage. SBG1-UPS is ideal for packed beds and other types of countercurrent ion exchangers where consistent operation is important cycle after cycle. Higher void space and minimal fine mesh beads provides low pressure loss and helps prevent channeling and other distribution problems. Packed beds typically have limited freeboard (only a few inches with the resin in the swollen form).

Trace Contaminant Removal (U, Cr, As, Se, ClO4)

ResinTech SBG1-UPS has high capacity and can be used to remove a variety of trace contaminants, even when that contaminant is not highly preferred compared to the other bulk ions in the feedwater. Useful capacities are obtained when the feedwater TDS is substantially less than the resin’s internal TDS. Uranium, chromate, and perchlorate are particularly well removed. Arsenate and selenate are well removed but can be chromatographically displaced by sulfate and other ions.

Nitrate Removal

ResinTech SBG1-UPS can be used in the chloride cycle to reduce nitrates along with sulfates. Regeneration is accomplished with sodium chloride brine, in a fashion similar to water softeners. Although high operating capacities and high salt efficiency can be obtained, there is also the possibility of nitrate dumping. Use of chloride form anion resin reduces pH during the early portion of the exhaustion cycle. When treating waters with high hardness the brine dilution and displacement waters should be softened and a low hardness salt used to prevent scaling during regeneration.

Sulfate Removal

High capacity resins such as ResinTech SBG1-UPS have high affinity for divalent anions such as sulfate, provided the feedwater TDS is not greater than about 5,000 ppm. At higher TDS the resin loses its affinity for sulfate and begins to prefer chloride. Regeneration is accomplished with sodium chloride brine in a fashion similar to a water softener.
