Neptune - Pleated Filtration
For accurate, high efficiency, high flow rate, low pressure drop applications. Specially designed for hospitals, food and beverage processes and pharmaceutical sites, pleated filtration is the ideal choice. The Neptune range of cartridges offers a solution for visible contaminant reduction through to critical bacterial protection. Consistent classification with exact micron sizes ensure effective targeting of specific contaminants and optimised cartridge service life.
Typically used for refined filtration in a range of applications where the particulate range in the incoming water is known e.g. borehole water, bacteria grade filtration in hospitals or food & beverage and cosmetics manufacturers where water quality is paramount.

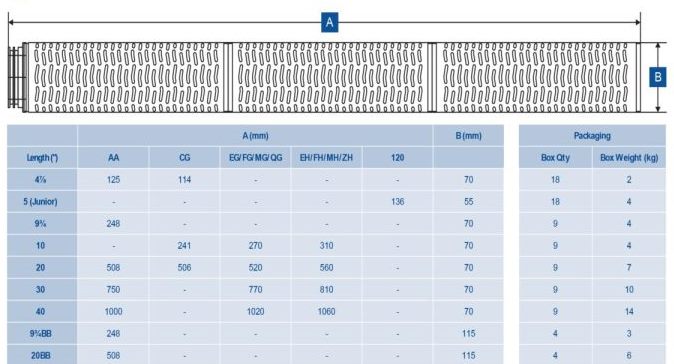

Standard Diameter:
With over 2000 possible configuration the 70mm diameter has the greatest diversity of micron ratings length stand end caps available.
Large Diameter:
The PPP-BB in 93/4” and 20”, offers compact high efficiency filtration for flow rates up to 3 times the equivalent 70mm diameter cartridge.
Junior
Designed to retrofit Filterite LMO, Advanta and Nuclepore housings.

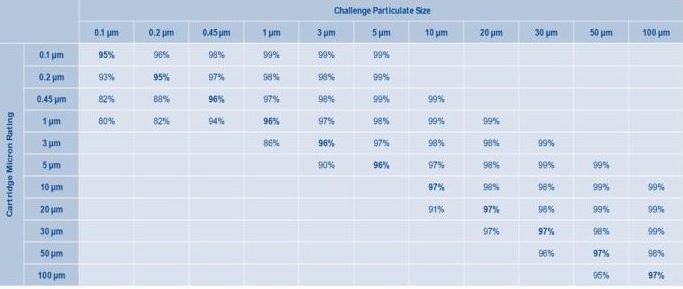

The removal efficiency of a filter is dependent on the criteria which it is tested, along with the size and type of particulate challenge. The below table show the efficiency of each PPP when using particle count analysis with AC Fine and AC coarse test dust at a various particulate challenges.
