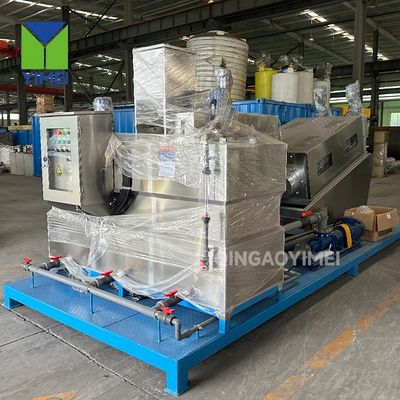

Qingdao Yimei - New Stainless Steel Screw Press Dewatering Sludge Machine
Through the sludge delivery pump, the sludge is transported to the sludge deliveryoort. The sludge is transported to the flocculation mixing tank after adjusting the flowrate through the metering tank, and the sludge is fully stirred and mixed by the mixer. After fully stirring through the mixer to form a large alum flower, it is sent into themain body of the stacking screw. The alum flower sent into the concentration part is concentrated by gravity whilemoving to the direction of the dehydration part5. The gap between the swimming ring and the fixed ring of the dehydration part be-comes narrow, and the dehydration is further pressurized by adjusting the backpressure plate located at the exhaust outlet, and finally the mud cake is discharged.
- Low power, high torque, low speed operation, less failure
- Exquisite processing technology, low cost
- Small footprint,high degree of automation
- Supply OEM service ,1 year spare for free.
Exterior design:
The main body is made of SS304 Stainless Steel, which has good weldability, heat resistance, corrosion resistance and low temperature strength
Interior design:
The fixed ring and the swimming ring are stacked on each other to form a cylinder, and the screw shaft runs through it to form a filtering device
- Install mode: Overground
- Voltage: Customize
- Size: 4mx0.95mx2m
- Control mode: full automat -ic or self-automatic
- Function: Absolute Dry mud 30~75k
