Advanced Sensors - Model X-One -Next Generation of Process Analysers
The Advanced Sensors X-One is the next generation of its incredibly successful EX range of analysers for oil in water measurements. It expands on 15 years’ of design, manufacturing and service of process analysers into the harshest of environments; to deliver a new range of analysers that measure Oil in Water.

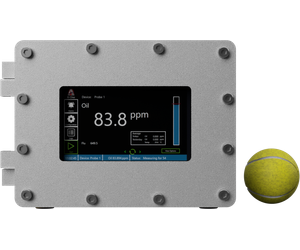

- The smart and versatile controller becomes the new hub for Advanced Sensors technology.
- Controller <25Kg
- Controller size: 283 x 200 x 195 mm
Measure Oil in Water using either Deep UV Fluorescence for light oils and condensates or Laser Induced Fluorescence for crude oils.

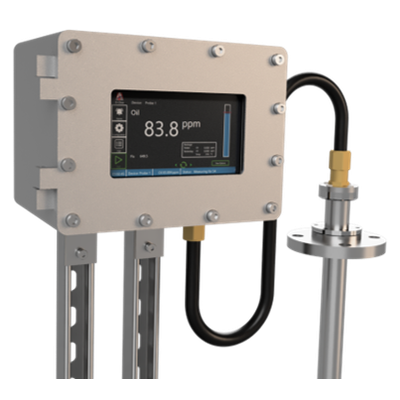

This system comes in either a probe or side-stream configuration. With the position of the side-stream measurement cell being flexible. Three dual measurement systems as seen in the images to the left.
New Ultrasonics Cleaning system that uses artificial intelligence to enhanced performance and lifetime of operation. With lower noise levels and more efficient cleaning.
Extended time between service with longer lifetime of laser.
It is equivalent to having two or more lasers in the one system.
Send data from the analyser over the most standard protocols and connect 3rd party sensors to the X-One via Modbus or 4-20mA.
With
Hart, Modbus and 4-20mA outputs
Modbus and 4-20mA inputs
