NextCentury - Read Management Sub-Metering System
System installation is simpler than ever with plug and play components. All equipment is equipped with two-way communications which enables over the air updates, remote support, and troubleshooting. Powerful cloud storage protects your data. A comprehensive web interface allows designated users to view device status and data. Flexible enough to utilize new technology while maintaining compatibility with legacy systems and equipment. Remote troubleshooting and updating capabilities reduces the need for costly field service calls.
NextCentury is transforming sub-metering technology to work efficiently for you. We provide full-featured, dependable equipment at reasonable prices. We’ve worked with users every step of the design process to provide equipment that is the easiest to install and maintain.
- Mounts directly on the NextCentury water meter to simplify installation.
- Digitizes and transmits sub-meter data to the Gateway over an advanced, encrypted mesh network.
- Battery monitoring technology provides long lasting battery life.
- Provides advanced real time leak detection.
- Compatible with any standard pulse output device
- Collects, stores, and transmits usage and status data from system components.
- Enables advanced monitoring of unit consumption through dynamic reporting.
- With a 7 inch touch screen, users can now easily interact with data as well as view tutorials for installation and maintenance.
- Free TCP/IP (Wired Ethernet, Wi-Fi, Cellular).
- Redundant and secure cloud data storage.
- Initialize and monitor units using our simple and robust web interface which is optimized for mobile devices.
- Designated web users can view real-time data for all equipment down to the meter level.
- Increase coverage by amplifying and repeating signals in the mesh network.
- 110V/ 220V AC powered.
- Simple compact power connection.

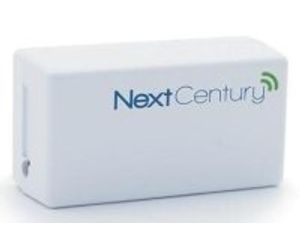

Transceiver
Dimensions
- 74.7mm x 40.3mm x 29.1mm
- 2.9in x 1.6in x 1.1”
Operating Environment
- -28C - 60C
- -20F - 140F
- Up to 90% relative humidity (non-condensing)
Power Requirements
- CR123A (2/3 A-size) 3V lithium battery
- Widely available camera battery
- Typical Battery Life - 6 years average
- Typical Battery life assumes constant operating temperatures are between 70F - 90F. Battery life may be reduced with operating temperatures outside of this range.
Compatibility
- Compatible with all standard pulsed output meters (gas, water, electric, etc.)
- Contact NextCentury Meters for specific compatibility
Communications
- 900mHz extemded long distance radios
- FCC Certified
- Integrated Encryption Engine
- Signal strength detection for dynamic power levels to increase battery life
Data Resolution
- Typical 12 hour interval
- Adjustable up to 15 minutes
- Integrated leak and drip detection

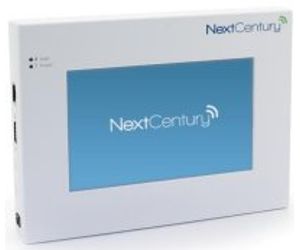

Gateway
Dimensions
- 223.2mm x 164.4mm x 36.8mm
- 8.8in x 6.5in x 1.5in
Operating Environment
- -28C - 60C
- -20F - 140F
- Up to 90% relative humidity (non-condensing)
Power Requirements
- 120/240 VAC wall transformer (Included)
Compatibility
- Compatible with all Next Century radio equipment
- Compatible with select 3rd party sub-metering equipment
Communications
- 900mHz extended long distance radios
- FCC Certified
- Integrated Encryption Engine
- 2-way self-healing mesh network
- Ethernet 802.3 10/100
- Secured virtual tunneling technology for data security
- Wifi 802.11 a/b/ g/n
- Secured virtual tunneling technology for data security
- Cellular modem (Coming Soon)

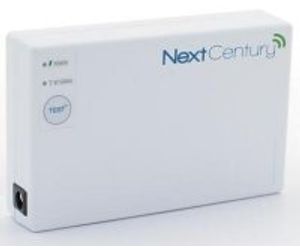

Repeater
Dimensions
- 102.7mm x 65.75mm x 22.7mm
- 4in x 2.6in x .9in
Operating Environment
- -28C - 60C
- -20F - 140F
- Up to 90% relative humidity (non-condensing)
Power Requirements
- 120/240 VAC wall transformer (Included)
- Alerts via email or sms text message of loss of power
Compatibility
- Compatible with all Next Century radio equipment
Communications
- 900mHz extended long distance radios
- FCC Certified
- Integrated Encryption Engine
- 2-way self-healing mesh network
Web Interface
- Intuitive web interface.
- Eliminates the hassle of installing and maintaining complicated desktop software.
- Easily setup and manage every aspect of your sub-metering system from any computer, tablet, or phone.
- Increased data availability improves utility billing accuracy.
Powerful Reporting
- See a big picture view of your system health.
- View individual system components.
- Easily manage users, information, reports, and device status.
- Use the standard reporting package or create your own reports online.
- Customizable email report subscriptions.
Robust Restful API
- Free web API available for data integration.
- Up-to-date documentation and support.
