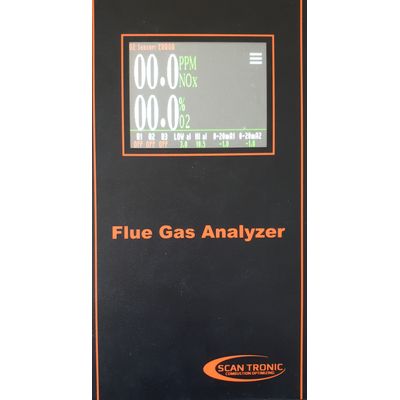

ScanTronic - Model NC2019 -Nitrogen Control Flue Gas Analyzer
NC2019 – Nitrogen Control 2019 (Q1/Q2 2020) (testing). Product based on one NOx (NOS2019) sensor that’s connected via RS485 communication port and its developed for more demanding systems and emission gas control systems. (measure NOx/O2)
Flue Gas Controller is a modern flue gas analyzer platform for measurement of content in flue and emission gases at high temperatures. It is an advanced product with several editions of the product regarding of customers needs and desires. It is an upgradeable product that may have almost any sensor you desire. Upgrade of product is as well easy and it needs only to put memory card and the device will do the rest. It is a highly adaptive product and upgadeable for future decades of usage and all development that will come.
- Measures the excess of fluegas content directly in the flue gas channel after combustion.
- Measures the level of exhoust gases content in protective gases.
- Facilitates regulation and thus minimize the consumption of gases.
- Measures and controls the consumption of protective gases in connection with welding.
- Power supply - 230 V AC 50/60 Hz
- Power consumption - 30 VA
- Dimensions - H x W x D 244 x 159 x 65 mm
- Measuring range - 1.0 - 20.9% O2 and NOx (ppm)
- Display - Touch Screen
- Accuracy - ± 0.15%
- Ambient temperature - 60 °C
- Output signals - 2 x 0(4)-20 mA,
- Inputs - 2 x 0-10 V and standard 5 pin for OS2014 input
- Galvanic isolation - 300 V DC
- Alarms - 3 individually set levels
- Heat up time - Approx. 10 seconds
- Calibration - Atmospheric air and 1% (2%) O2 in N2 every 6 months
- Cable connections - 3+1 pcs. M16 and 1 pc. M20 cable glands
- Extra - memory card slot, RS485, CAN bus
