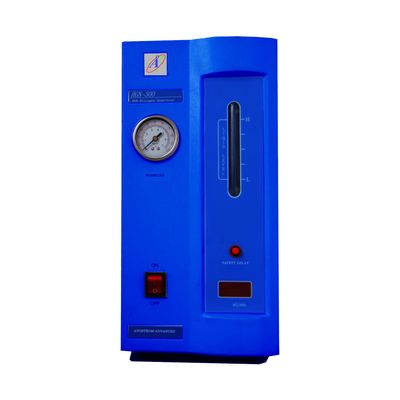

Angstrom - Model HGN-300 and HGN-500 -Nitrogen Generator
HGN-300 & HGN-500 nitrogen gas generators utilize theories of physical adsorption and electrochemical seperation and use rare metal as catalytic agent. The HGN300/500 Nitrogen Generator can directly extract highly pure (as high as 99.999%) nitrogen from the air. There is no need of deoxidation. The HGN300/500 nitrogen generators are compact and advanced in technology. The HGN300/500 Nitrogen Generator are very suitable for gas chromatographs and micro coulomb meters.
Most popular related searches
nitrogen generator
backflow protection
gas chromatography
electrolysis
chromatograph
electrochemistry
backflow
chromatography
- The electrolysis pool is made of stainless steel and it can store liquid, electrolysis of nitrogen and release oxygen at the same time
- Large electrolysis area, low temperature of the pool and high pure nitrogen production,
- The nitrogen generator is a specially designed unit that prevents liquid from backflowing
- Protection against over pressure and over flow
- Very stable performance and long lifetime
- The flow rate is displayed using digital LED display
- Compact size, light weight, and ease of operation.
- Purity of Produced Nitrogen: 100.00%
- Output Flow: HGN-300 type: 0 ~ 300 ml/min
- HGN-500 type: 0 ~ 500 ml/min
- Work Pressure: 0 ~ 0.4 MPa
- Input Air Pressure: 0.4 ~ 0.5 MPa
- Power Supply: AC 220V/50Hz, 110V/60Hz
- The Maximal Power Consumption: 100 W
- Input Air Discharge: More than or equal to 600 ml/min
- Weight: 21 kg
