Genius - Model 1025 - Nitrogen ...

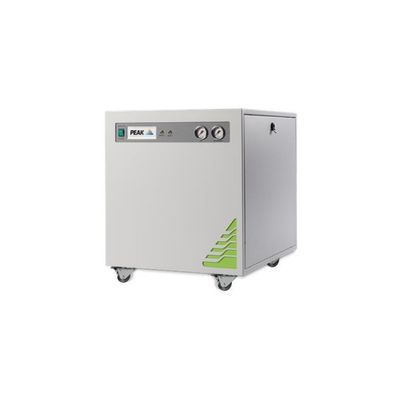

Genius - Model 1025 -Nitrogen Generator

FromPEAK Scientific Instruments Ltd

SHARE

Producing a single output of LC-MS grade nitrogen (up to 15 L/min) and air (up to 35 L/min) specifically to meet the requirements of PerkinElmer’s QSight Triple Quad 110 and 210 LC-MS/MS systems, the Genius 1025 has been designed using membrane technology to produce LC-MS grade purity and an internal air dryer to produce a clean supply of dry air. The Genius 10 series models are compressor-based systems Peak manufacture utilizing membrane technology to ensure high performance and supply of analytical instrument grade nitrogen.

Most popular related searches

nitrogen generator

triple quadrupole

analytical instrument

triple quadrupole LC/MS

membrane manufacturer

Self-contained solution with integrated compressors, no need for an external air supply
Highly economical source of nitrogen/dry air with low lifetime running costs
Easy to use, gas at the push of a button
Wheels make it easy to manoeuvre generator around the lab
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen
Max Gas Flow: 15L/min
Max Output Pressure: 80psi/5.5bar
Gas Type: Air
Max Gas Flow: 35L/min
Max Output Pressure: 110psi/7.6bar

Site & installation

Gas Outlets Fitting: 2 x 1/4" BSPP
Start Up Time: 30 minutes
Power Consumption: <1265 VA
Voltage: 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 7 A
Heat Output: 3,925 BTU
Max Operating Temp: 30°C / 86°F
Particles: <0.01µm
Phthalates: none
Suspended Liquids: none
Accreditations: CSA, FCC, CE

Dimensions & weight

Size (HxWxD) mm: 713 x 600 x 750 mm
Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches
Generator Weight: 108kg / 237.6lbs
