NivuLevel Mobile - Model NFM-050 - Self-Sufficient GPRS/UMTS Data Logger
NivuLevel Mobile is a self-sufficient system with well-thought-out power management for reliable level measurements, data logging and convenient data transmission. NivuLevel Mobile is a self-sufficient system for reliable level measurements, data logging and convenient data transmission. The sophisticated power management and the built-in modem allow for long-term measurements with automated data transmission.
- Automatic transmission of measurement data
- Power supply also for sensors
- Extremely long battery life
- Rechargeable battery can be easily replaced by operator
- Flood protection IP68 when locked, IP67 open
- Operation via smartphone, tablet etc.
- NIVUS SIM uses best available service network and includes free data transmission for 1 year
Monitoring measurements on measurement sites with insufficient infrastructure are no longer a problem with NivuLevel Mobile. Measurements are reliably logged and transmitted via GPRS even if LAN and mains power are not available.

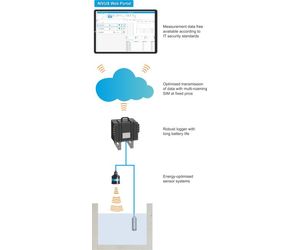

Intuitive up-to-date operation via web browser together with tablet, smartphone or notebook enable quick commissioning procedures. A quick start wizard guides through the most relevant parameter settings and the integrated modem transmits readings and system data automatically to the NIVUS web portal. In combination with the long battery life service visits and hence maintenance expenses can be reduced to a minimum.
- Event logging in stormwater treatment plants
- Level measurement in water bodies
- Level measurement in storage sewers
- Power supply: Standard/rechargeable battery: 3.6V, direct: 8 to 30VDC max. 20VA
- Enclosure: Aluminium die-cast
- Weight: 900 g
- Operating temperature: -20°C to +60°C
- Storage temperature: -20°C to +80°C
- Max. humidity: 80%, non-condensing
- 4 universal inputs, 1 digital output, internal temperature and humidity sensor
- Data transmission: GSM/GPRS/UMTS
- TCP/IP, MQTT
- Protection: IP 68
- Aerial connection: FME
- Connection: NIVUS web portal / AWS / Azure
