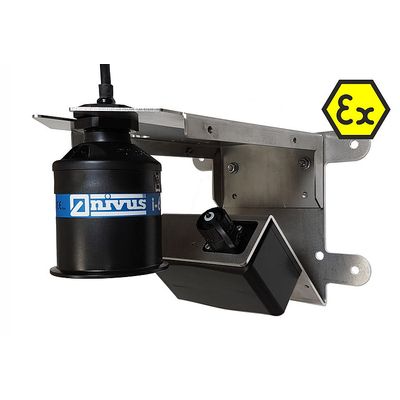

NIVUS - Model OFR -Radar Sensor for Contactless Flow Measurement

SHARE

Suitable for applications featuring high velocities and low levels. OFR Radar - contactless flow measurement: Suitable for applications featuring high velocities and low levels. By developing the OFR radar sensor in combination with our previous product range we are capable of providing the best possible measurement solution to detect any kinds of flow in each application. Whether for measurement places with highest accuracy requirements or for applications with difficult media – we provide easy-to-install measurement systems achieving optimum results. The unique combination of radar measurement and ultrasonic measurement provides previously unprecedented accuracy covering the entire measurement range.

Most popular related searches

flow monitoring

radar flow monitoring

flow velocity monitoring

velocity monitoring

doppler velocity monitoring

flow radar velocity

doppler velocity

Contactless flow velocity measurement
Installation without interrupting processes
Determination of surface velocity
Low maintenance through contactless radar sensor
Easy installation and operation
For use in aggressive / abrasive media
For measurement places with high pollution loads and sedimentation
For shooting discharge and low flow level
Improved accuracy in combination with bottom-mounted ultrasonic velocity sensors

General

Measurement principle: Radar doppler flow velocity detection
Measurement range: 0,15 m/s - 20 m/s
Temperature range: -30 °C to 70 °C
Frequency response: 24 GHz - ISM band
Beam angle: ca. 24° horizontal, ca. 45° vertical
Distance: 0,3 m - 20 m
Protection: IP 68
Enclosure material: High-performance composites
Measurement principle: Radar doppler flow velocity detection
Measurement range: 0,15 m/s - 20 m/s
Temperature range: -30 °C to 70 °C
Frequency response: 24 GHz - ISM band
Beam angle: ca. 24° horizontal, ca. 45° vertical
Distance: 0,3 m - 20 m
Protection: IP 68
Enclosure material: High-performance composites

Common

Measurement principle: Radar doppler flow velocity detection
Measurement range: 0,15 m/s - 10 m/s
Temperature range:

-30 °C to 70 °C
Ex-Type: -20 °C to 60 °C

Frequency response: 24 GHz - ISM band
Distance: 0,3 m - 10 m
Protection: IP 68
Enclosure material:: High-performance composites
Ex-Approval: II 2 G Ex ib IIB T4 Gb; TÜV 16 ATEX 185271X; IECEx 16.0034X
