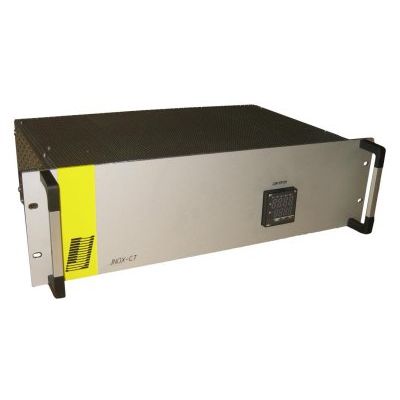

JCT - Model JNOX -NO2 to NO Sample Gas Converter
Applications: For extractive gas analysis. For emission and process monitoring. Conversion of NO2 to NO for NOx-measurement. Enables the use of infrared-analysers. For dry sample gases with unheated inlet or for hot and humid sample gases with heated inlet.
Most popular related searches
NOx converter
temperature indicator
carbon monoxide emissions
gas analysis
solenoid valve
infrared analyzer
process monitoring
NOx monitoring
sample gas
NO/NO2
- Variable applicable due to different housing and equipment versions
- Long lifetime of the converter cartridge of approx. 106 ppmh NO2
- High conversion ratio
- Fast response time due to low dead volume
- No CO-Emission with molybdenum containing converter filling material
- High flow performance
- Low cross sensitivities
- In 19“-, wall mounting or portable housing
- Efficiency of converter > 96 %
- Digital temperature indication and status LED’s
- Status contact
- Conversion material carbon or metallic (molybdenum containing)
- Model with unheated or heated bypass connection upstream conversion for additional measurements or fast response times
- Model with local or remote controllable unheated or heated 2/3-way solenoid valve to bypass the converter cartridge for calibration or test gas feeding
