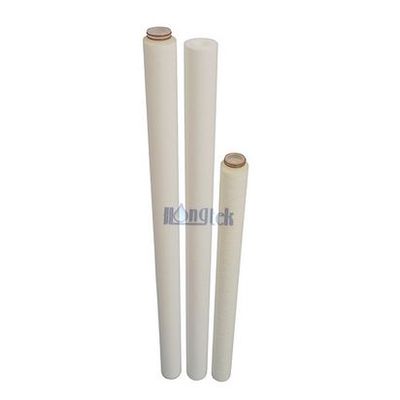

Hongtek - Model NPP Series -Nominal PP Melt Blown Filter Cartridges

PP melt blown filters have multi-layered constructions with fine fibers in inner layers while in outer layers fibers are coarse, which lead to progressive contaminant removal efficiency and consistency of good performance.

PP melt blown filter cartridges own high dirt holding capacity, low pressure drop, high flow rate, good chemical resistance, long service life and effective filtration for suspended particle, sediment and other kinds of impurities, also, there is no fibre released. PP melt blown cartridges are economical and classical filter media, which are widely used in liquid prefiltration industries.

• Filter Media Polypropylene
• Length 5", 9.75", 9.8", 10", 20", 30", 40", 50", 60", 70" (According to customers requirements)
• Inside Diameter 28mm, 30mm (Special ID is accepted)
• Outside Diameter 2.36"(60mm), 2.4"(61mm), 2.5"(63mm), 2.55"(65mm) (Special OD is accepted)
• Filtration Rating 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm
• Gasket/O-ring Silicone, EPDM, Viton, Buna
• End Cap DOE, 222/Flat(SOE), 222/Fin(SOE), 226/Flat(SOE), 226/Fin(SOE)

• PP filter cartridges are mainly applied to most industry standard housings
• 100% FDA approved safety polypropylene materials suit a lot of demanding applications
• Superior PP melt blown filters have high filtration efficiency and consistent good performance
• PP cartridges have multi-layered construction, high contaminant holding capacity and long service life
• Many types of end caps are available by thermally-bonded, such as 222/fin, 222/flat, 226/fin, 226/flat etc.
• Customized special PP melt blown filter cartridges are accepted to meet specific application`s requirements

• Food& Beverage
• Chemicals and Solvents
• Petrochemical Process
• Plating solution
• Pre RO/ID water filtration
• Industrial waste water treatment
• PCB industry
• Pharmaceuticals
• Electronic Industry
