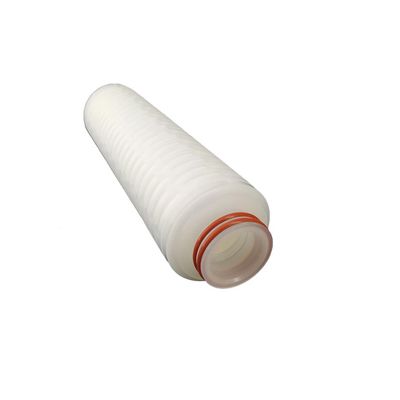

ARC - Model ECO-DNP -Nominal PP Pleated Filter
ECO-DNP is a higly efficient PP pleated filters,the all polypropylene structure provide a wide provide a wide range of applications and cost effective. The extended pleated polypropylene media area provide high flow rates low pressure drop and increased dirt holding capacity.
Most popular related searches
pleated polypropylene filter
pleated filter
polypropylene filter media
polypropylene filter
filter element
depth filter
media filter
gaskets
- Outer Cage: Polypropylene
- Inner Cage: Polypropylene
- Endcaps: Polypropylene
- O-ring & Gasket: Silicone, EPDM
- Filter Media: Polypropylene
- Ratings from 0.1 to 50 micron
- All polypropylene structures
- Nominal Filter Rating
- Multi-layers filter media up to five
- FDA listed polypropylene components
- OD:2"(70mm)
- Length:10",20",30",40"
- Normal Operation Temperature: up to 55°C
- Max Operation Temperature: 80°C△P≦1Bar
- Maximum Pressure differential: 4.2bar at 25°C
- Maximum Reverse pressure differential: 2.1 bar at 25°C
- Filtration Area: 0.6m2
- Work PH Value: 1-14
- Back Wask: not rcommend

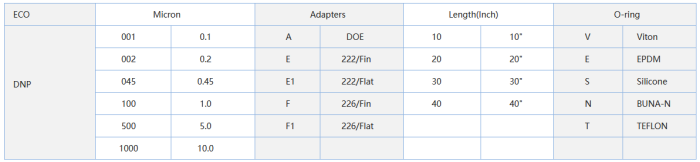

- Part No=DNP+Micron+Adapters+Length+O-ring
- EG: A 40 inch 5.0um filters with 226/Fin adapters and Viton O-ring
- The Part NO:DNP500F40V
