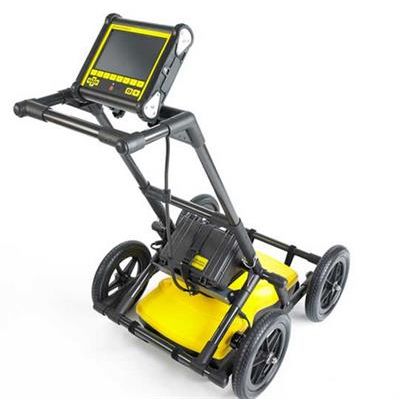

Sensors & Software - Model LMX100 -Non-Metallic GPR Utility Locator
As one of the most affordable GPR utility locating tools, LMX100™ completes the locator’s toolbox, offering a more complete picture of the underground infrastructure. Offers the perfect balance of depth penetration and high resolution for accurate locating. LMX Family is a non-destructive Ground Penetrating Radar (GPR), that can locate utilities that cannot be located using traditional methods (EG. PVC materials, or utilities that contain broken tracer wires.)
LMX® has the advantage of detecting:
- Metallic and non-metallic utilities
- Utilities with broken tracer wires
- Undocumented utilities
- Disturbed soil often associated with utility burial
- Unexpected obstacles/buried structures such as old foundations that can cause problems for excavations or construction
LMX100™ offers the perfect balance of depth penetration and resolution for accurate locating. Data is collected in Locate & Mark mode; this provides a real-time image in the field to identify utilities and mark their locations.
LMX®’s high-resolution screen also features:
- Touchscreen
- Markers
- Wi-Fi Connectivity
- Mini-reports
- Internal GPS
- Geo-tagging
- Export Usage Report
- USB for data transfer
- Full collection review
- Digital hyperbola calibration
Enhance your productivity and increase your confidence when locating metallic & non-metallic pipes with these new features:
- Bright, high contrast color display for data visibility in all lighting conditions
- Built-in Wi-Fi, allowing you to send mini-reports from the field
- Internal GPS for geotagging screen captures
- Resistive touchscreen that works with your gloves on
- Data markers to highlight features on your data
- Horizontal scaling to optimize target visibility
- USB for quick data transfer
- GPR Sensor size 630 × 410 × 230 mm (25 × 16 × 9 in)
- GPR Sensor weight 5 kg (11 lbs)
- Display Unit weight 2.83 kg (6.24 lbs)
- Screen 8.0"diagonal, high-visibility, sunlight-readable LCD color display with touchscreen
- Adjustable backlighting
- 1500 NIT and 800:1 contrast ratio
- Battery weight 3.6 kg (7.9 lbs)
- Wireless Integrated modules: Wi–Fi (IEEE 802.11 b,g,n)
- GPS/GLONASS
- Audio Built–in speaker–85dBA speaker w/volume control
- Battery Lead acid gel cell
- Battery Life: 4–6 hours
- Battery Capacity: 9.0 Ah
- Charger Built-in charger with status indicator
- Universal AC mains charger input: 100-240V, 1.5A, 50/60Hz
- Output: 12 Volts @ 3 Amps
- DVL-500N Display Unit Input 11–18V, 4A maximum
- Temperature & Environmental Ruggedized, environmentally sealed unit and connections.
- Ingress protection (IP) rating: DVL-500N Display Unit is rated to IP65 under IEC 60529
- Relative Humidity operation (non–condensing): 10–90%
- Operating temperature range: −40 to 50℃
- Do not use touch screen below −20℃
- Use battery charger between 0 and 30℃
- Regulatory Specifications EMC–FCC, CE, IC, ACA, RSM Safety–TUV, CE
