Blagdon Pump

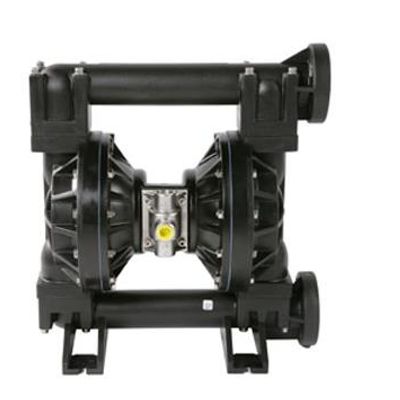

Blagdon - Model B50 -Non-Metallic Pump
FromBlagdon Pump
Simple construction, easy to maintain. Capable of handling high S.G. and viscous fluids. Pressures to 8.6 bar (125 PSI). Flow rates up to 530 litres/minute (140 gal/min). Flanged end connections. Reliable, proven pneumatic air valve.
Most popular related searches
- Maximum Delivery: 530 ltrs/min (140 gal/min)
- Max. Working Pressure: 8.6 bar (125 PSI)
- Max. Solid Particle Size: 6 mm. (0.24″)
- Air Inlet: 3/4″ NPT
- Temperature Limits: Determined by Elastomers
- Suction Lift (Dry): 6.1 metres (20 feet)
- Suction Lift (Wet): 7.6 metres (24.9 feet)
- Fluid Inlet / Outlet: 2″ ANSI #150 Flanged RF
- Installation: Surface mounted
- Accessories Included: Exhaust Air Silencer
- Shipping Weight: 39.5 kg. (87.1 lbs) polypropylene / aluminum 50.5 kg. (111.3 lbs) PVDF / aluminum 50.5 kg. (111.3 lbs) polypropylene / stainless steel 70 kg. (154.3 lbs) PVDF / stainless steel
- Shipping Dimensions: 630 x 380 x 670 mm 24.8″ x 15.0″ x 26.4
