Vanton - Non-Metallic Tank / Pump Systems
From Other Pumps
Vanton is your one-stop-source for tanks integrated with thermoplastic pumps, sensors and controls for:
Products Details
- Lift Stations
- Collection Stations

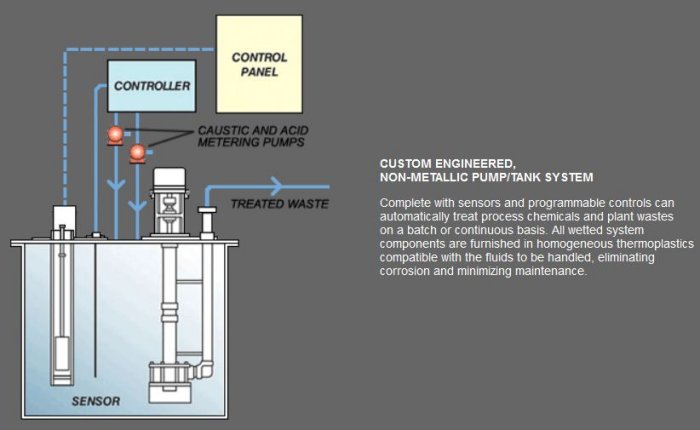

- pH Neutralization Systems
- Vapor Recovery Systems
- Laboratory/Small-Scale Waste Treatment Systems
Vanton engineers, fully integrates, 100% factory tests, and supports these systems, ensuring you of properly matched components, simple start-up and guaranteed performance, without the risk, complications and delays of dealing with multiple vendors.
- Standard and custom systems
- Simplex, duplex and triplex configurations
- Manual or fully automated
- Leak detection
- Single and double wall construction
- Capacities from 60 to 5,000 gal (227 to 18,927 liters)
- Broad range of thermoplastics and plastic-lined metals
- Skid-mounted, mobile and floating/pontoon configurations
- Non-metallic vertical centrifugal, horizontal centrifugal or peristaltic pumps
- Pre-engineered, fully integrated and ready to run
Standard and custom tanks are offered in square, rectangular or cylindrical configurations, in single- or double-wall thermoplastic or thermoset construction, or as plastic-lined metal tanks. Double wall tanks are available with built-in leak detection sensors linked to visual and audible alarms.
All can be configured with horizontal centrifugal, vertical sump or rotary peristaltic pumps whose wetted components
are molded of solid, inert polypropylene (PP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC), polyvinylidene fluoride (PVDF) and ethylene chlorotrifluoroethylene (ECTFE) thermoplastics, eliminating pump corrosion and fluid contamination. These systems can be furnished with thermoplastic and thermoset piping and valves that are inert to the fluids being handled.
Tank-pump systems can be equipped with instrumentation for manual or fully automated systems configured with liquid level controls, visual and audible signal devices, analog and digital display flow meters, flow totalizers, pH controllers and other instrumentation tailored to individual service conditions.
All fluid contact components of Vanton tank/pump systems are constructed of chemically inert, non-metallic materials ideal for all industries in which corrosive, abrasive, hazardous, ultrapure or unidentified fluids are collected, transferred, neutralized or otherwise treated including:
- Beverage
- Chemical
- Food
- General Industrial
- Metal Finishing
- Metalworking
- Mining
- Petrochemical
- Pharmaceutical
- Pollution Control
- Power, Energy & Utilities
- Pulp/Paper
- Semiconductor/Electronics Manufacturing
- Water & Wastewater Treatment
Configurations
TYPICAL TANK/PUMP CONFIGURATIONS:
Double Wall Tanks provide back-up protection against leakage of hazardous wastes. Primary and secondary tanks are sized and blocked to provide ample void space between tanks to contain leakage. Sensors positioned between walls are linked to a controller, which activates visual and audible alarms. These mobile systems are equipped with Vanton SUMP-GARD® vertical polypropylene pumps and FlexPlug® valves to provide safe, efficient handling of corrosive wastes.

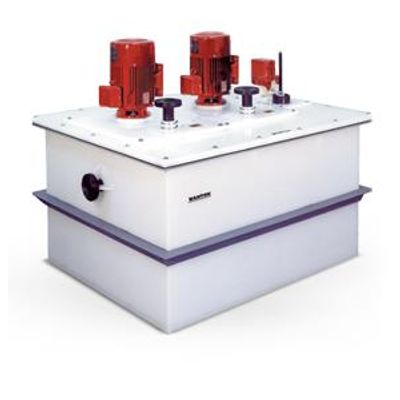

FLEX-I-LINER XB & CC modelsSelf-Contained Duplex Pump/Tank Systemincorporates a thermoplastic tank with two SUMP-GARD® vertical centrifugal pumps, valves, level controls and associated piping — pre-engineered, tested and skid-mounted, ready to run after connection to power and external piping.
FLEX-I-LINER XB & CC modelsAll polypropylene (PP) Pump/Tank Lift Station engineered for a semiconductor manufacturing facility features a low profile SUMP-GARD® series pump with integral pump/motor shaft supported by large bearings. Tank cover elevated to show buoyancy switch level contro Cylindrical Pump/Tanks of PP, PE, PVC, PVDF, and other thermoplastics are available. The system shown is equipped with a stainless steel stand, rising-rod level control, and a vertical SUMP-GARD®thermoplastic pump. The cover plate is sealed with an EPDM gasket, and the pump is fitted with a FUME-GARD® vapor seal to protect external bearings and motor from corrosion.
FLEX-I-LINER XB & CC modelsMobile Pump/Tank Systemhandles a diversity of corrosive and abrasive wastes from multiple sites. This system consists of a cylindrical tank of polypropylene, and pedestal-mounted FLEX-I-LINER®sealless, rotary peristaltic pump. All wetted components are molded of chemically inert thermoplastics or elastomers that provide resistance to a wide range of corrosive, abrasive, hazardous and toxic wastes.
