SMS-TORK
TORK-GP - Model S1010 -Normally Closed General Purpose Solenoid Valve
FromSMS-TORK
Application : Air, water, gas. Size : 1/8" … 2" BSP (on request NPT). Pressure : 0,5 bar … 16 bar (0 … 16bar - 1/8"-1/4"). Tube : Stainless steel
Body : Brass. Seal : NBR, on request EPDM. Temperature : .-10°C…80 °C. Position : Normally Closed. Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC. Protection Class : IP65 and Exproof models.
Most popular related searches
- On request; solenoid valve can have 1 mounting hole at the bottom of the body.
- Ideal for the automatic control of media in a wide range of applications.
- TORK solenoid valves satisfy relevant 97/23/EC, Pressure Equipment Directive (PED) and 2006/95/EEC
- Low Voltage Directive (LVD).
- Coils interchangeable

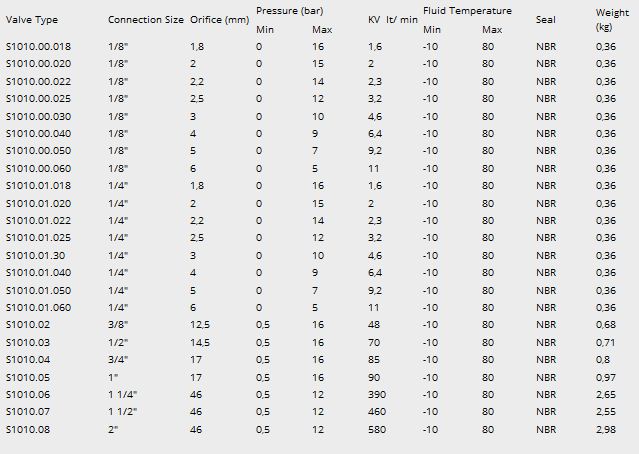

- Flow factor Kv of each valve is indicated, so that the flow Q can be calculated as a function of pressure
- Solenoid valves must be used with filtered fluids.
- Solenoid valve can be mounted in any position without affecting operation; vertical with coil upwards
- preferred.
- Standard pipe connection is G (BSP) (ISO 228-1) and on request; other pipe connections are available
- [NPT (ANS11.20.3))
- Application:Air, water, gas
- Size: 1/8" … 2" BSP (on request NPT)
- Pressure: 0,5 bar … 16 bar (0 … 16bar - 1/8"-1/4")
- Tube:Stainless steel
- Body: Brass
- Seal:NBR, on request EPDM
- Temperature: .-10°C…80 °C
- Position: Normally Closed
- Coil Voltage: 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
- Protection Class:IP65 and Exproof models
