Ntek - Model MB01 -Microphone Boom
FromNtek Srl

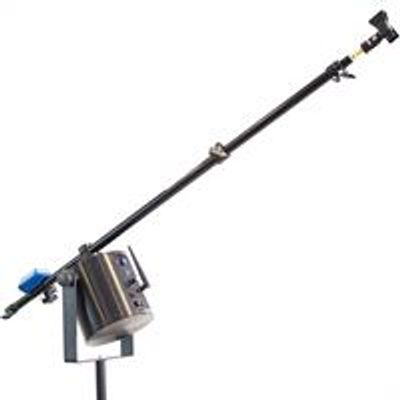

MB01 rotating microphone boom is used to obtain spatial measurements of sound pressure levels by continuously moving the microphone back and forth. The rotation speed, angle, and arm length are adjustable. MB01 boom can be used for standard building acoustics and specific lab studies that require acoustic measurements, such as sound absorption tests in a reverberation chamber. The support brackets of the rotating boom allow for customizing the trajectory angle of the arm and rotating microphone. The microphone boom can be remotely activated via a wireless remote control.
Most popular related searches
sound pressure level
acoustic measurement
sound absorption
building acoustics
sound testing
acoustical building
test chamber
sound monitoring
Code : 40100
STANDARD EQUIPMENT
- Remote control
- Manfrotto Telescopic beam
- Weight balancing
- Microphone clip
- Tripod + soft bag
- 2 Allen keys for fixing
- Antenna
- Electricity supply cable 110V/ 220V at 24V DC
CONFORMITY LAWS
UNI EN ISO: 140, 16283
TECHNICAL FEATURES
- Main unit dimensions:
- Diameter: 180 mm
- Height: 180 mm
- Weight: 3,5 kg
- Mounting: tripod allows inclined traverse plane
- Power: 24V DC 1A
- Rotating boom ray: 600 – 1800 mm
- Rotating angle: +/- 90° e +/- 180°
- Remote control: 433MHz
- Antenna: 433 MHz
- 3 scan speeds: minimum, medium, maximum
- Return automatically on zero when scan is over
