Simatek - Model NDC - Nuisance Dust ...

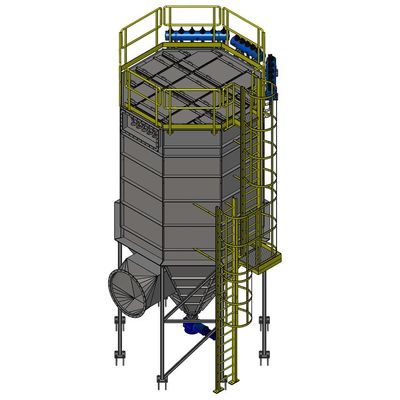

Simatek - Model NDC -Nuisance Dust Collector

FromSimatek A/S

SHARE

Fabric filter technology acquired from FLSmidth Airtech. Mining, crushing, grinding, transportation and storage of raw materials creates fugitive dust which is a big problem in most cement plants and lime calcination lines. Simatek holds several NDC filters designed to capture these fugitive dust particles, so they can be recycled.

Most popular related searches

chain conveyor belt

pulse-jet cleaning

bucket elevator

dust collection filter

cement industry

mining crushing

The CE8 is designed for central dedusting of several points. It is a modular construction with a filtration area from 25 to 720 m² divided on 22 models. It also comes in a bunker filter version (without hopper´) for local silo dedusting.
The IN-V is a bunker type of filter for direct installation on silos or dust transport equipment e.g. on a bucket elevator. This filter comes in three sizes with either 13, 20 or 30 m² filtration area and with built-in fan including motor.
The IN-EH and IN-EV are bunker type filters for direct installation on silos or dust transport equipment. They are equipped with an envelope type bag, suited better for horizontal use. Where the IN-EH is for horizontal installation on e.g., a screw – or drag chain conveyor, the IN-EV is for vertical installation e.g. on a bucket elevator or silo. These filters come in several sizes from 5 to 67 m² filtration area and with built-in fan including motor.
The SimPact 4T-R is suitable for dedusting of air from coal mill plants (for coal dust with explosive characteristics corresponding to explosion class ST1 – VDI 2263). It is a cylindrical construction with either conical hopper or without hopper as bunker filter. It comes in 13 models with filtration area from 3,1 to 436 m².

Automatic pulse-jet cleaning of bags
Including controller with adjustable pulse time
Filters with hoppers are including support and necessary access facilities
