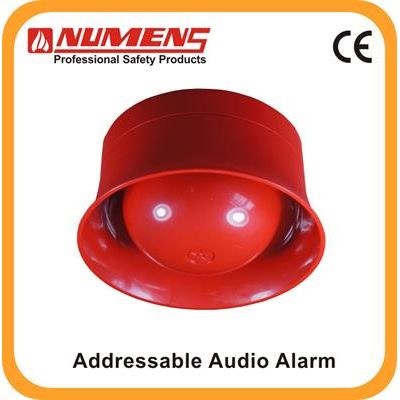

Numens -Â Model 640-002 -Numens addressable audible sounder
The 640-002 addressable audio alarm devices are suitable for connection to addressable fire detection and alarm systems. 640-002 is loop-powered. Activation is initiated either by a dedicated initiation message from the control and indicating equipment or optionally when the control and indicating equipment enters the Alarm Condition. Up to 32 devices can be connected to each alarm zone loop. The 640-001 range of addressable audio alarm devices provide fire detection and alarm system designers with a premium for life safety applications.· White body available for audible alarm device
· Loop-powered from control and indicating equipment
· Operates when either a dedicated activation message is received from the control and indicating equipment, or optionally when the control and indicating equipment enters the Alarm Condition
· Loud sounder output of 85 dB at 1 m
· Low quiescent current
· Easy DIP-switch address setting
· Low maintenance
· Quick alarm and shadow addressable options are available.
|
|
640-002 |
|
Operating voltage |
DC (17 ~ 30) V |
|
Quiescent current |
650 µA |
|
Start-up time |
≤ 10 s |
|
Alarm current |
≤ 8 mA |
|
Audible alarm output |
≥ 85 dB @ 1 m |
|
Audible alarm period |
Continuous or pulse |
|
Terminal wiring |
(0.4 ~ 2.5) mm2 |
|
Usable addresses per alarm loop |
32 |
|
Operating temperature |
(-10 ~ +55) °C |
|
Operating humidity |
(0 ~ 95) % RH, non-condensing |
|
Storage temperature |
(-25 ~ +80) °C |
|
Storage humidity |
(0 ~ 98) % RH, non-condensing |
|
Dimensions |
Φ 110 mm × 53 mm |
