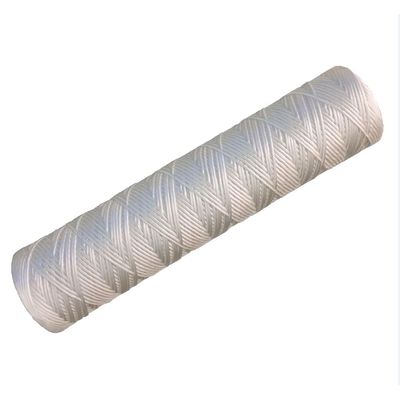

ARCModel WF -Nylon Wound Filter

SHARE

WF is depth wound filters,the materails is Nylon,it with excellent chemicals performance use for high temperature and aggressive solvents,with high flow rates, low pressure drop and big dirt holding capacity.

Most popular related searches
  • Filter media: Nylon
  • Inner Cage: SS304.SS316
  • Endcaps:  Polypropylene
  • Ratings from 0.5 to 50 micron
  • High Working temperare
  • High Differential Pressure reach to 4.2bar
  • OD:63mm,114mm
  • ID:28mm,30mm
  • Length:10",20",30",40"
  • Normal Operation Temperature: up to 110°C
  • Max Operation Temperature: 120°C △P≦1 Bar
  • Maximum Pressure differential: 4.2bar at 25°C
  • Work PH Value: 6-14
  • Back Wask: not rcommend
  • Part No=WF+N+Adapters+Length+Inner Cage
  • EG: A 40 inch 5.0um filters with SS304 inner Cage
  • The Part NO:WFN500A40A
