R + B Filter GmbH

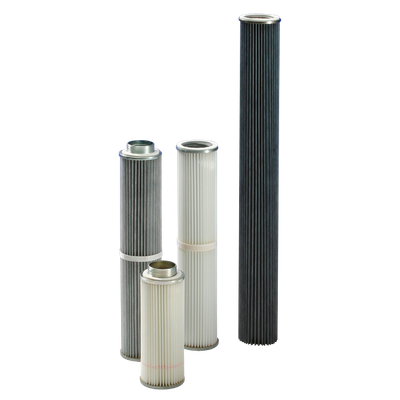

R+B - Ø 115 mm Filter Cartridge with Thread

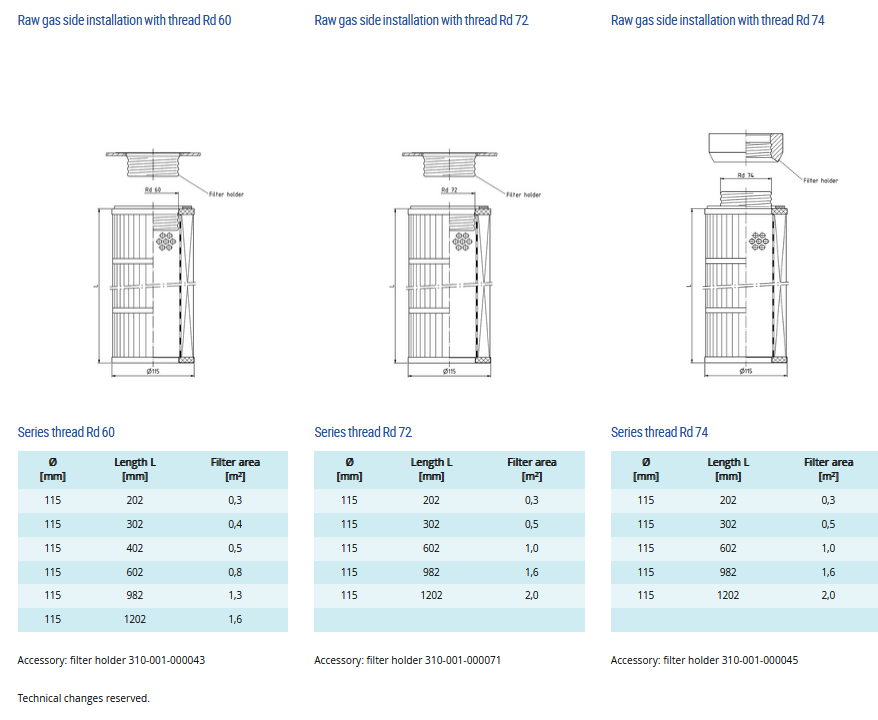

Filter Cartridges Ø 115 mm with Thread: Simple assembly by screwing in. No tools required. Star-shaped bottom possible.
Most popular related searches
filter cartridge
cartridge filter
hot gas filtration
hot gas
solenoid valve
pneumatic conveyor
compressed air
cleaning nozzle
glass industry
media filter
- Pharmaceutical Industry
- Production of plastic parts
- Pneumatic conveyance
- Glass industry
- Filling stations
- Production of food
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
All Filter Materials
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 220 °C
- Further information can be found under Hot Gas Filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Cleaning nozzles
- Solenoid valves
- Valve controls
