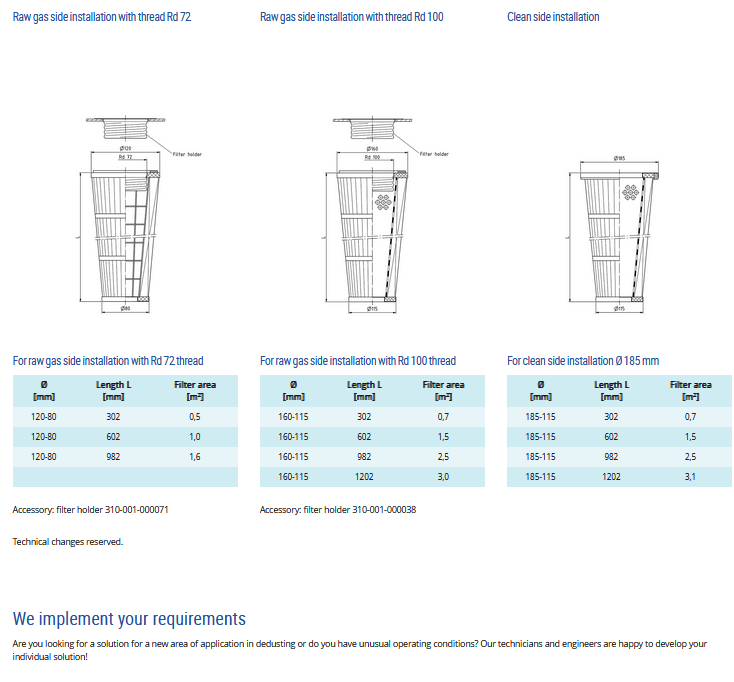

R+B - Ø 120, 160, 185 mm Conical Filter Cartridges
Filter Cartridges Ø 120, 160, 185 mm Conical: Compact dust collectors. Low upflow velocity in the system. Small interior space of the filter cartridge.
Most popular related searches
filter cartridge
cartridge filter
mobile dust collector
hot gas filtration
dust collector
polypropylene filter media
hot gas
solenoid valve
pneumatic conveyor
compressed air
- Silo ventilation
- Pharma industry
- Production of food
- Mobile dust collectors
- Pneumatic conveyance
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 220 °C
- Further information can be found under Hot Gas Filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Cleaning nozzles
- Solenoid valves
- Valve controls
