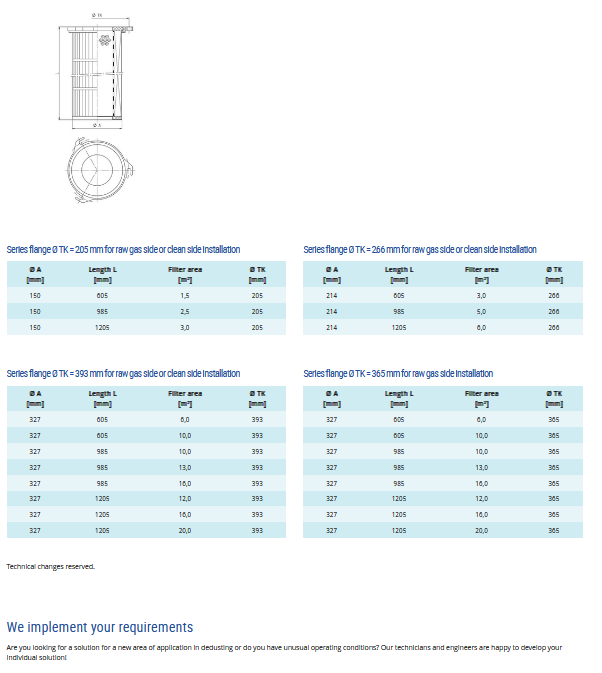

R+B - Ø 150, 214, 327 mm Filter Cartridges with 3 Lug Flange
Ø 150, 214, 327 mm Filter Cartridge with 3 Lug Flange: Robust flange made of aluminum. Installation possible from the raw gas side or clean side. Long service life.
Most popular related searches
filter cartridge
cartridge filter
hot gas filtration
hot gas
solenoid valve
compressed air
cleaning nozzle
media filter
gas filtration
polypropylene filter media
- Recycling
- Metal processing
- Aircraft industry
- Zinc spraying
- Mining industry
- Foundries
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 220 °C
- Further information can be found under Hot Gas Filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Cleaning nozzles
- Short injectors
- Venturi nozzles
- Solenoid valves
- Valve controls
- Flow guide cylinder
