R+B - Model Plitex 3000 -Ø 160 mm Filter Cartridge

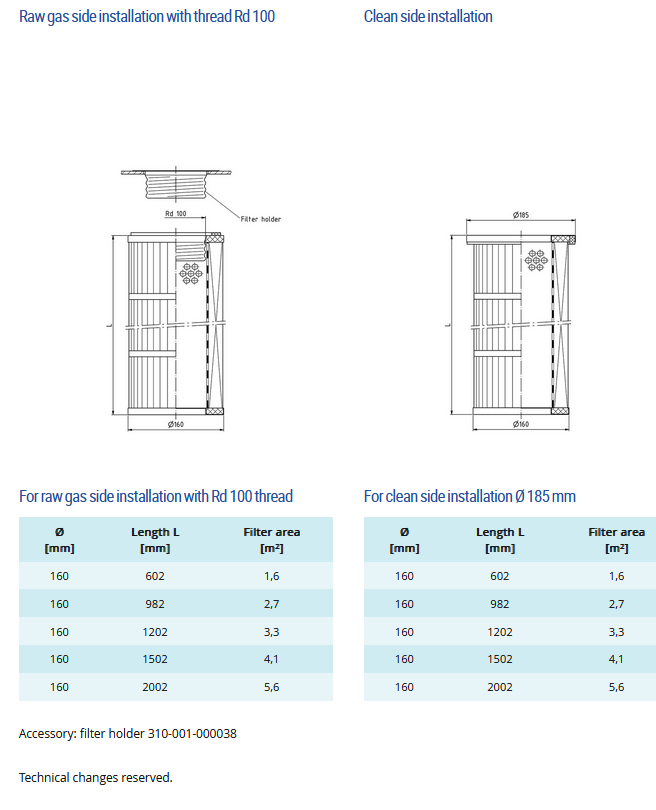

Ø 160 mm Filter Cartridge: Toolless assembly through thread. Interchangeable with filter bags. Can be used in all industrial areas.
Most popular related searches
filter cartridge
cartridge filter
hot gas filtration
hot gas
solenoid valve
compressed air
cleaning nozzle
plastic processing
media filter
gas filtration
- Pigment production
- Metal spraying
- Plastic processing
- Blast furnace extraction
- Laser cutting
- Polyester
- Polypropylene
- Glass fibre paper
- Cellulose
- Aramid
- Polyphenylene sulfide
- PTFE
The filter material is adapted to the properties of the dust. Our filter media are certified according to DIN EN 60335-2-69 or DIN EN 1822.
Special filter media for unusual operating conditions are available on request.
Standard
- Maximum operating temperature: 80 °C
- Metal parts: galvanized steel
- Cleaning with compressed air
- Suitable for all ATEX zones
Special designs
- Maximum operating temperature up to 400 °C
- Further information can be found under Hot Gas Filtration
- Metal parts: stainless steel
- harmless with food contact according to EC + US FDA regulations
- Filter holders
- Cleaning nozzles
- Solenoid valves
- Valve controls
We implement your requirements
Are you looking for a solution for a new area of application in dedusting or do you have unusual operating conditions? Our technicians and engineers are happy to develop your individual solution!
