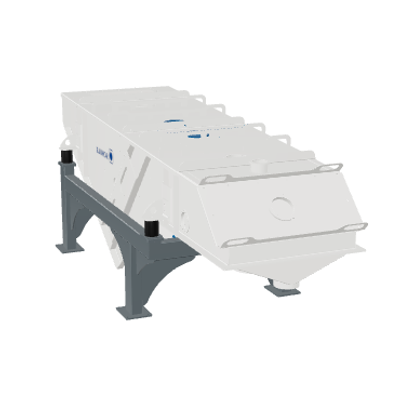

FH Schule - Model SI V FS -Oat Polisher - Vibration Screen
No matter if you are producing oat, rice, pea or wheat flakes - after flaking and subsequent drying and cooling, the flakes are fed directly into the inlet of the vibration screen. A product distributor in the inlet of the vibration screen spreads the product evenly on the top screen which separates lumps that may have formed. The screened product falls onto the lower screen, where the good product remains and the fines are screened off. All three fractions are discharged via separate outlets.
Two unbalance motors generate the necessary vibration, while the mechanically adjustable screen inclination provides the necessary angle to convey the flakes towards the outlet. The screen decks for fractioning the flakes are divided, which facilitates and speeds up the change of the respective screens. To cover different capacity ranges, the SCHULE vibration screen is available in three versions, all of them in stainless steel, yet in different sizes.
- Capacity t/h: up to 6
- Motor power kW: up to 2 x 2.0
- Screen surface m²: up to 4
- Screen decks: 2
- Easy sampling
- Versatile use
- Rapid screen change
