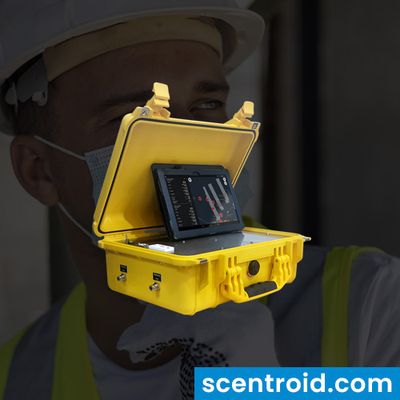

Scentroid - Model TR8 -Odotracker Handheld Analyzer
The Scentroid TR8 Odotracker Handheld Analyzer is a complete, Portable Air Quality Monitor and Mobile Laboratory. Users can simultaneously measure up to 2 ambient air quality & greenhouse gases using up to a combination of 2 different sensor types such as: Electrochemical (EC), Photo-Ionization Detectors (PID), Non-Dispersive Infrared (NDIR), Radiation, Noise sensors and many more. The Scentroid TR8 Odotracker Handheld Analyzer builds on the established Odotracker by providing an extended number of sensors. TR8 includes a sampling pump with an adjustable sampling rate, up to 2 chemical sensors that are specified at the time of ordering.
Detection Threshold
Odotracker measures chemicals close to the detection threshold at parts per billion (ppb) levels
Reporting Standards
Traceable back to international standards: e.g. USEPA (40 CFR part 53) and EU (2008 / 50 / EC)
Manage Odour Losses
Laboratories can manage odour degradation through sample transportation and storage by analyzing values live and in-field instead
Automated Data Logging
Every Odotracker provides automated continuous chemical, GPS position, temperature, and humidity data logging
Increased Safety
By providing a constant reading of ambient air, users will receive added protection from over exposure to chemical vapours
Everything You Need
TR8 includes a sampling pump with adjustable sampling rate, up to 2 chemical sensors, and our software application
Emission Measurement
The TR8 Odotracker Handheld Analyzer can determine emission trends through 24+ hour data logging and validate dispersion models through emission measurements.
Flue Analysis
The TR8 Odotracker Handheld Analyzer can also be used as the perfect tool for flue analysis. Using the TR8 can provide an effective way to gather reliable combustion data through the measuring of temperature, oxygen, and carbon dioxide.
Sensors:
Maximum Number of Sensors: 2
Type of Sensors: PID, NDIR, EC, Laser Particulate Counter, Temperature and Relative Humidity, and GPS Position
Sampling Rate: Adjustable from 1/s to 1/m
Sampling Ports: 1 to 2
Initiation Time: 5 Minutes to 6 Hours depending on sensors
Settling Time: 0.5 Seconds to 8 Seconds depending on sensors
Pressure Range: 80-120 kPa
Manual Calibration: Using calibration gas and on-board screen
Automatic Calibration: Optional, using build-in calibration gas
Power:
Battery Life: 24 Hours
Temperature Range: -30 to 50 °C
Humidity Range: 15 - 90% relative humidity
Communications:
Communication: Bluetooth connection with any Android device
Hardware:
Casing: Heavy duty pelican case ensures components are kept safe
Dimensions:
Weight: 1.7 lbs
Size: 240 mm x 198 mm x 109 mm
Warranty: 24 Months Full Warranty (Sensors depentant)
