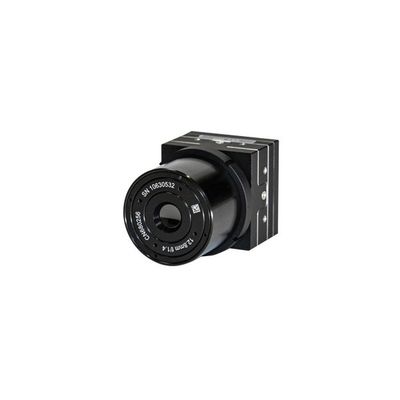

CamSight HD - OEM LWIR Thermal Camera Module
CamSight HD is a thermal module camera with high-definition thermal imaging. CamSight HD (High Definition) is a long-wave infrared (LWIR) thermal camera, developed as an Original Equipment Manufacturer (OEM) solution for seamless integration into complex optronic systems. Equipped with LYNRED’s ATTO GEN2 1280 infrared sensor, it delivers high-definition thermal imaging performance for night and day applications.
Whether deployed in ground-based or airborne missions, CamSight HD is built to handle the most demanding intelligence, surveillance, and reconnaissance operations.
Packed with an unmatched set of features, it ensures real-time, freeze-free image delivery across all light-level conditions.
To meet diverse mission and end-user requirements, CamSight HD is also available in a Quick Connect version with multiple lens configurations for maximum flexibility and ease of integration.
- Low Size, Weight and Power (SWaP)
- Unrivalled high-definition thermal imaging
- Optimal infrared day and night vision
Sensor:
- NETD: < 40mK @ F#1/1.0
- Bandwith: LWIR (8-12µm)
- HFoV (°): 95 / 56 / 46 / 28 / 24 / 17 / 15 (More on demand)
- Consumption: < 2.8W
- Video outputs: HD-SDI / MIPI-CSI2 / GigE Vision
- Time to image: < 3s
- Modes: Shutterless; Soft Shutter; Less Shutter & Hard Shutter
- Dimensions (WxHxD): OEM: 40 x 40 x 31.5mm, Quick Connect: 40 x 40 x 58.3mm
- Weight: OEM: 83g, Quick Connect: 128g
