Huba Control AG

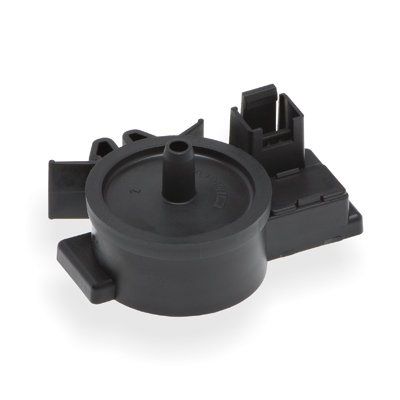

Huba Control - Model 400 -OEM Pressure sensor
FromHuba Control AG
The type 400 pressure transmitter, with its proven ceramic lever technology, has adjusted temperature compensated sensor signals and is available with a voltage output. The (VDC) voltage output is an amplified, linear signal suitable for direct processing in electronic control systems. The sensors are ideal for continuous level measurement in washing machines, dishwashers etc. OEM Pressure sensor 400 0 ... 10 - 100 mbar.
Most popular related searches
OEM pressure sensor
pressure sensor
continuous level monitoring
pressure transmitter
level monitoring
washing system
process control system
temperature sensor
sensor system
- Robust construction, sensor element has no contact with media
- Fully automated manufacture, including in-line adjustment of zero point and full scale value
- Special snap mounting bracket for easy single handed mounting in sheet steel of varying thicknesses
- Special design developed for large scale manufacture at an attractive price
- Medium: Liquids and gases
- Pressure range: 0 ... 10 — 100 mbar
- Output: ratiom. 10 ... 70%
- Accuracy: < 0.3% fs
- Electrical connection: Connector RAST 2.5
- Pressure connection: Hose connector Ø 6.2 mm
- Snap-mounting
