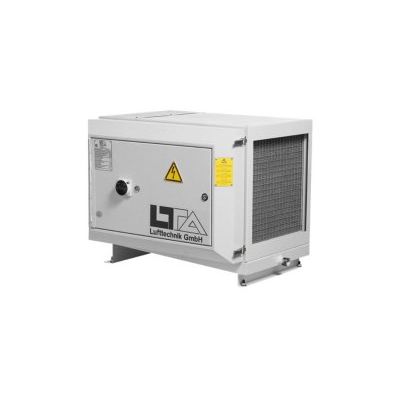

Model AC 3000 -Oil and Emulsion Mist Filters

As with all LTA air filters, the AC 3000 features minimal power consumption with an excellent rate of filtration of > 99 % and a noise level of < 75 dB(A). As the electronics are integrated directly in the air filter, no special electrical cabinet is required. In addition, the filter is equipped with an EC fan characterized by an extremely high level of efficiency. For a two-shift operation with approx. 4,000 operating hours a year, the investment on EC fans is recouped after 1.3 years or 5,400 operating hours.

It can be powered with either single-phase or as an option three-phase current. The AC 3001 single-step filter is appropriate for internal coolant pressures of up to 40 bars and a machine interior of up to 6 m³. The AC 3002 two-step filter is appropriate for internal coolant pressures of up to 80 bars and a machine interior of up to 6 m³, whether for oil or emulsion. In addition, this filter model is capable of modular upgrading to an AC 3061 / 3062, making it adaptable for extraction on large machines, as well as group extraction on multiple machines.

The AC 3000 is also available as the solid matter filter AC 3000 Solid. Additionally, it can be retrofitted with an optional afterfilter with various filter cells, e.g. for smoke or, in the activated charcoal version, for odors. This filter series is also available as a mobile version with an extraction arm for extracting welding fumes, as well as a magnesium version approved for magnesium processing with emulsion and oil.
