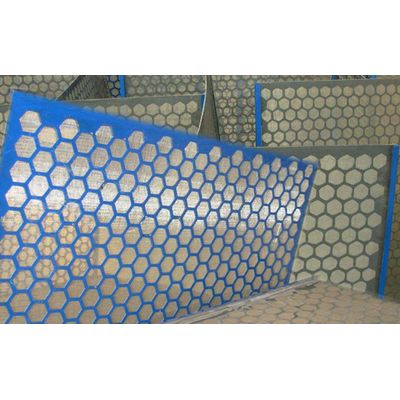

Atlas Wedge - Oil Field Shale Shaker Screen

FromAtlas Wedge Wire Co.

SHARE

We supply metal wire vibratory screen supplied in standard accessories / OEM for Various Shale Shakers and Motion Solid Control Devices. Our vibrating shaker screen is mainly used in oil drilling mud process, coal mine and various ore dressing and other industrial sifting screening. The screen panels can be designed with multi-layer or single layer flat panels, with or without backing plate support.

Most popular related searches

drilling mud processing

wedge wire filter

filter cleaning

vibrating screen

wedge wire element

pressure cleaning

Wedge wire filter elements for oil field equipment & spares
Service conditions:

Fluid: Oil emulsion( consists of 40% saline water and 60% crude oil )
Viscosity @ oper. Temp. = 3160 cps Density @ Oper. Temp. = 961 kg/m3 Flow
Rate = 354.16 m3/h Working temperature= ( min./ Nor. / Max. ) = 25/35/50
Deg.C Pressure drop across clean filter < 5 Kpa Max. allowable pressure drop
= 50 Kpa Slot size= 0.23 mm Selected :

Elements

Radial slot opening
Slot size = 0.23 mm
Wire width = 0.75 or 1.0 mm
Outside diameter = 30 mm
Length= 1000 mm
Max. Delta P 4.2 Bard
AISI 316L
Condition -clean pressure drop < 5 kpa

Shale Shaker Screen for Oil Drilling
Description: P/N

Mesh 25 Or Equal: 01-03-25
Mesh 39 Or Equal: 01-03-39
Mesh 48 Or Equal: 01-03-48
Mesh 86 Or Equal: 01-03-86
Mesh 97 Or Equal: 01-03-97
Mesh 118 Or Equal: 01-03-118
Crown Rubber: 01-05
Deck Spring (rear): 01-07

Shale shakers for Oil & Gas, Petrochemical

Shale Shaker Model-FLCC-514
Screen Pattern- Multi layer wave
Mesh Sizes: 40x40,60x60,80x80,100x100,120x120
