ABN Apparatebau Nittenau GmbH
ABN - Model MEKO 230/280 -Oil-Free Diaphragm Compressors
Oilfree - clean - economic - high-performance.A revolution in the plastering machine sector from ABN.A revolution in the plastering machine sector from ABN.Yet another highlight added to the successful range of oil-free diaphragm compressors from ABN.The MEKO 230/280, designed for use in all standard plastering machines, is packed with the most modern technology to bring you numerous advantages. It is the perfect choice for plasterers and painters, for example, who require oil-free air from a compressor that works reliably in continuous use and has a long life.
Most popular related searches
oil free air compressor
fine dust filter
diaphragm compressor
metal fines
fine dust
clean air
dust filter
forced air
anti vibration buffer
metal dust
- The motor is a non-enclosed, forced-air-cooled electric motor with 2 impeller wheels. It sees to its own essential cooling and therefore has a far longer life. The diaphragms are cooled simultaneously and withstand the loads longer.

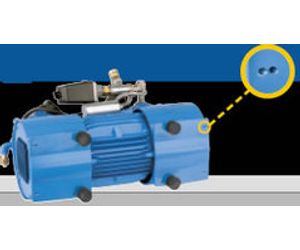

- The housing is equipped with 2 foot rails on each side of the compressor, providing you with unrivalled flexibility for installation purposes. For example, the MEKO 230/280 can be installed without difficulty in any plastering machine.
Concave rubber buffers, are not simply inserted in position but also screwed in place to lend the compressor the necessary stability in the machine. - The connection can have either a claw coupling (standard feature) or a one-hand coupling (optional without extra charge), whichever the customer prefers.
- A sound-damping metal fine dust filter, featuring a pyramid arrangement of filter segments that increases the cleaning area by a multiple, supplies the MEKO 230/280 with the necessary clean air.
- Three connecting points per compressor head make the MEKO 230/280 unique when it comes to the variability of connections. No matter where the compressor is used, the connections are always in a practical position to reach.
Easy-to-clean and maintenance-friendly thanks to a compact design. - Oil-free air, hence no oil-related soiling of plasters and paints when they are applied. Damage which otherwise may not become visible until years later is prevented from the outset.
- Water-proof rocker switch with status indicator.
- The ergonomically shaped carryhandle is now made of indestructible PVC so that it no longer becomes as hot as a metal handle.
- Metal suction tube for uniform distribution of the suction air.
- Metal fine dust filter with a pyramid arrangement of filter segments for absolutely clean air.
- Rugged automatic switch-off device – available as an option.
