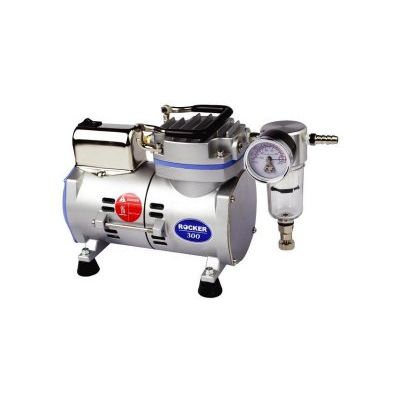

Rocker - Model 300 -Oil Free Vacuum Pump
No air pollution, maintenance free: Rocker series pumps are driven by Piston, no need for lubricant, regular oil changes and maintenance; with no oil pollution. Quiet and low vibration: Driven direct by motor with no additional belt-driven transmission; the quality vibration-proof assembly makes Rokcer series run at the lowest noise level among all other equivalent pumps.
Thermal protection device
Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then restart it when the temperature cools down.
Air inlet filter cartridge
Every Rocker series pump is equipped with moisture trap in air inlet to filter particle, moisture and prolong the life of pump.
Certification :
- CE certification
- CSA certification
- Filtration for microbiology test
- Air sampling
- Suspended solid test
- Vacuum filtration
Specification (110V, 60Hz)
- Max. power： 65 W
- Max. current：0.7 A
- Max. vacuum： 670 mmHg
- Max. flow rate： 20 l/min
- Noise level： 50.0 dB
- Horse power： 1/8 HP
- Net wet： 4.1 kg
- Port thread： 5/16 inch (8 mm)
Specification (220V, 50Hz)
- Max. power： 60 W
- Max. current：0.3 A
- Max. vacuum： 670 mmHg
- Max. flow rate： 18 l/min
- Noise level： 50.0 dB
- Horse power： 1/8 HP
- Net wet： 4.1 kg
- Port thread： 5/16 inch (8 mm)
