Tri-Mer - Model OM-1 -Oil Mist Eliminator

FromTri-Mer Air Pollution Control Systems

SHARE

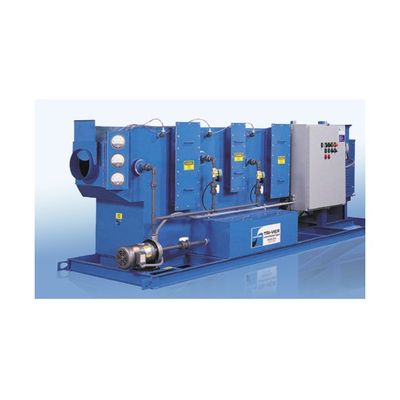

Tri-Mer’s OM-1 Mist Eliminator collects mists and fogs at the source and directs them to a three-stage filter for disposal or recovery.

Most popular related searches

mist eliminator

oil mist eliminator

centrifugal collector

filter cartridge

electrostatic precipitator

electrostatic precipitation

1 Stage 1 uses a proprietary 13-layer mesh filter media, and substantially reduces mist loading to the final stage. Operation is at 4" to 5½" of pressure across the unit; removal performance is 99%+ at 3 microns.
2 Stage 2 is the coalescing stage, where smaller droplets are “grown”. 16-layer filter media achieves 99%+ efficiency at 3 microns.
3 Stage 3 uses 6 unique filter layers for final mist elimination.
The Tri-Mer Mist Eliminator is compatible with mineral oils, soluble oils and synthetics, and will accommodate multiple mist sources.

a low pressure design that minimizes energy consumption.
unique, long-lasting filter cartridges which are easily removed, cleaned and restored to service.
gauges at the first and second stages to monitor static pressures across the filter pads. Automatic wash-down cycle can then activated: wash-down can also be initiated manually.
out-performs centrifugal collectors, indexing fabric filters, electrostatic precipitators.
all-steel construction; with blower and ducting available.
easy to install. Skid-mounted package includes duct connections, controls interfacing, fan, re-circulation, pump, piping.
