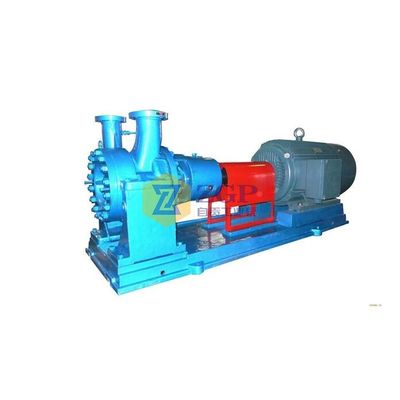

Zigong - Model ZY Series - Oil Pump

Zigong - Model ZY Series -Oil Pump

FromSichuan Zigong Pump & Valve Co., Ltd.

SHARE

ZY oil pump is a brand new product which is based on the technologies of Y oil pump, it is a updated product of Y series oil pump, which can satisfy the energy saving requirements for customers. ZY(P) oil pump is a derivative product of ZY series, it is added the axial suction structure to adapt system arrangement of petrochemical industry.

Most popular related searches

corrosive fluid

hydraulic modeling

chemical process pump

Flow rate:Q= 2.5~600m³/h
Total head:H=30~330 m
Speed:n=2950rpm
Temperature:T=--45~420?
Efficiency:η=82%
Pump diameter:50~250mm

Conforms to GB3215-92 general technical conditions of chemical and petrochemical process pump in refineries.
High efficiency hydraulic model for wetted parts increases the pump efficiency by 5~8% compared to Y series oil pump.
Enlarged bearings improves the reliability of pump.
High universalization and interchangeability reduces the cost of spare parts.
Air cooled,fan cooled and water cooled of bearings are optional for different fluid temperatures.

Top suction structure for ZY oil pump
Axial suction structure for ZY(P) oil pump
Both single stage and double stage structure are available
The updated ZY and ZY(P) oil pump share the same structure and dimension which enable customers to replace the existing pumps with few changes at site.

Mainly suitable to pump clean fluids,low and high temperature fluids,neutral or corrosive fluids.
Widely used in industries of oil refinery,petrochemical,chemical,oil field,oil conveying.
ZY(P) pump is more suitable for oil field processes.
