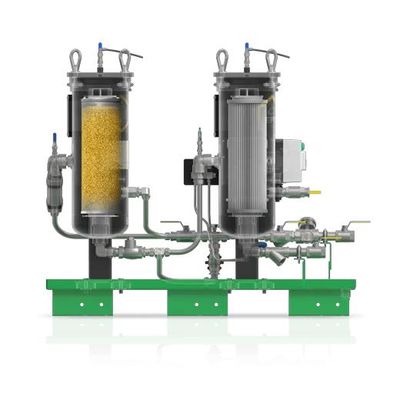

EPT - Model SVR FRF -Oil Varnish Removal System for Phosphate Ester Fluid
Phosphate ester fluids are the preferred hydraulic fluid for electro-hydraulic control (EHC) systems due to their excellent fire-resistant properties. Suffering from unnecessarily high acid production levels, these fluids are challenging to maintain, demanding additional fluid maintenance and chemistry management. Standard acid filters aren’t enough, often contributing to fluid breakdown and equipment failure as they don’t address fluid chemistry.
SVR® FRF is an engineered dialysis-style fluid conditioning system backed by patented ICB® FRF ion-exchange technology and best-in-class mechanical filtration to manage and maintain phosphate ester fluids fully. Based on 30 years of dedicated experience, the SVR FRF design meets the requirements for nuclear applications addressing fluid chemistry to mitigate high acid levels, gel formation, and rampant varnish and return fluid quality to operating specifications without flushing or fluid change.
Combined with our TMR® N2 water removal system, the primary breakdown pathway of phosphate ester fluids can be fully managed. This combined approach removes up to 10x more contamination, controlling the rate of fluid breakdown and providing best-in-class protection against EHC system failures and lost revenue.
- Utilizes patented ICB® FRF ion-exchange technology to remove acids, dissolved metals, varnish and varnish precursors
- Protects servo valves by eliminating the contamination that would otherwise cause valve sticking or slow valve response time
- Offers the highest acid removal capacity available on the market, maintaining Acid Number to <0.09
- Significantly improves fluid resistivity
- Significantly reduces ISO particle-counts
- Reduces water by 150 PPM per day and maintains water 2, CO, H and C2C4 with the recommended TMR™ N2 system add-on
- Significantly extends fluid operating life
- Eliminates the need for flushing
- Manufactured to ISO 9001 standards
- Small footprint and straightforward plumbing
- Low maintenance: Turn it on and let it run; that’s it!
- No downtime – SVR FRF can be installed without an outage
SVR FRF owners gain access to a complete support program, including complimentary oil analysis and expert interpretation from our professional and Ph.D. Chemists until results have been documented. After results have been confirmed, owners are given the option to continue the analysis program for a quarterly fee.
