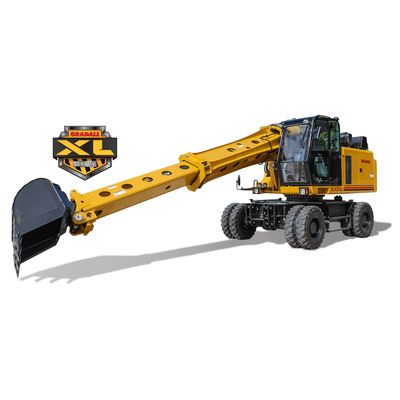

On/Off Pavement Rough Terrain Wheeled Excavators

Chassis Design

• Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
• Over-the-road highway speed travel at 20 mph with full time four-wheel-drive
• Carriers available with 4 x 2 or 6 x 4 drive, with optional 4 x 4 and 6 x 6.
• Oscillation lock cylinders and strong box plate frame construction provide stable work platform
• Work at front, rear or side of chassis without the need for outriggers
• Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
• Optional blade and outriggers available

Boom

• Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
• No loss of power to attachment tilting capability
• Consistent boom force through the entire dig cycle
• Dig down at 75° angle
• Rugged boom telescopes out to 33’ 10”
• Low profile for work under bridges, trees and in tunnels
• Full-length boom visibility during the entire dig cycle
• Fast cycle times for ditching, loading and spreading
• Quick attach bolt system handles full range of attachments

Operator Cab

• Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
• Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
• Internal tooth swing bearing provides smooth, stable movement
• With foot pedals, reposition carrier at speeds up to 20 mph
• Excellent visibility of the boom through the entire dig cycle
• Standard air conditioning
• Optional rollover protection
• Removable, stowable front window brings fresh air into the cab
• High performance, high reliability 24-volt electrical system
• Legendary Bosch Rexroth design and reliability
• All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages

Advanced Systems

• High performance, high reliability 24-volt electrical system
• Legendary Bosch Rexroth design and reliability
• All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages

Excavator

• Short tail swing won`t obstruct traffic
• Stable digging platform for work in any direction, without need to stop and lower outriggers
• Triangular telescoping boom design, with full power through the entire dig cycle
• Cycle speeds comparable or exceeding conventional excavators
• Electronic joysticks provide precise control over boom and attachment positioning

• Asphalt and concrete repair
• Mass excavation
• Demolition
• Barrier placement
• Ditching
• Sloping
• Finished grading
• Spreading rip-rap
• Curb, gutter and sidewalk replacement
• Tree and vegetation trimming
• Storm and canal cleanout
• Material movement
• Culvert replacement
• Mowing
• Guardrail cleanout
• Debris cleanup
• Bridge replacement
• Landscaping
• Dredging
