Singer Valve - Model 106-A-Type 4 -One-Way Altitude Control Valve with Differential Control
The 106-A-Type 4 altitude control valves are based on the 106-PG main valve, and are ideal for maintaining a preset maximum water level. The valve functions as a two-position control valve, either fully open or fully closed. The Type 4 allows normal flow to fill the storage tank to the maximum level, then closes drip-tight at the set-point. It opens to refill the tank once the level drops an adjustable amount below the high water level.
- No overflows
- Adjustable draw-down level (differential) set-point
- Superior repeatability
- Positive shut-off
- Adjustable draw-down for improved water-cycling

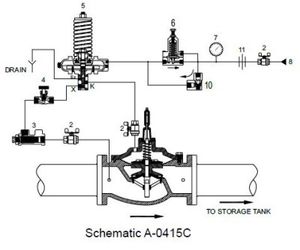

1. Main Valve - 106-PG, SPG or GE with X107 visual position indicator. Available in 2 in / 50 mm to 8 in / 200 mm, FNTP 2 in / 50 mm to 3 in / 80 mm, Flanged 2 1/2 in / 63 mm to 8 in / 200 mm, Grooved 2 in / 50 mm to 8 in / 200 mm, Globe style only
2. Isolation Valve
3. Strainer - 40 mesh stainless steel screen
4. Closing Speed Control
5. Model 301-4 Altitude Pilot
6. Model 106-RD Differential Pilot
7. Altitude Gauge - dual scale - feet and meter
8. Sensing connection to storage tank (complete in field)
9. Model 10 Check Valve
10. Union
Standard materials for pilot system components are:
- Ductile Iron
- Stainless Steel
- Brass
- Copper
