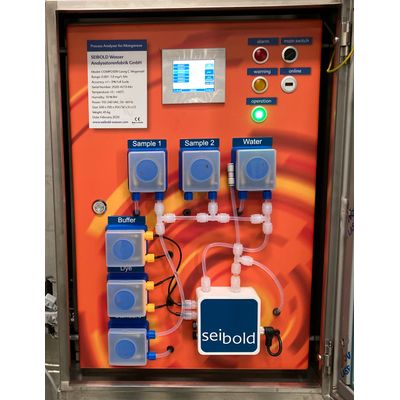

SEIBOLD - Online Analyser for Manganese

Drinking water. Manganese is naturally occurring in many surface water and groundwater sources, particularly in anaerobic or low oxidation conditions. A provisional health-based guideline value of 0.5 mg/litre should be adequate to protect public health.

Toxicity. Manganese is an essential element for humans and other animals. Adverse effects can result from both deficiency and overexposure. Manganese is known to cause neurological effects following inhalation exposure

Metal is measured as chelate complex between metal ions in the waste water and sensitive spectrophotometric reagent dye. Change of the intensity of the visible light throughout cuvette containing formed metal complex is directly proportional to metal concentration.

• Non toxic chemistry !!!
• Robust design.
• Minimal maintenance.
• Easy handling.
• High accuracy and precision.
• Suitable for mission critical applications.
• Automated cleaning and calibration.

Measurement method
Spectrophotometric (LED, detector)

Measurement interval
Continuous; Discontinuous (programmable, external start)

Sample and Reagents consumption per measurement
Sample: ~ 75 - 200 ml
Seibold Buffer and Reagent: ~ 3 ml

ENVIRONMENTAL DATA
Ambient operating temperature, sample temperature: 5 to 40°C
Ambient operating humidity: Up to 95 % RH non-condensing (bellow the condensation limit)

ELECTRICAL DATA

Power supply
Supply voltage: 220 … 230 V AC, 50…60 Hz (110 V AC or 24 V DC, optional)
Power consumption: approx 50 VA
Output signal: 4…20 mA

Screen
Color, TFT, liquid crystal display (LCD) with built-in backlight and brightness adjustment.

MAINTENANCE
Maintenance interval: 3 months
